| Place of Origin: | Hebei,China |
| Brand Name: | RT |
| Certification: | CE,ISO45001 |
| Model Number: | 5D Pipe Bends |
| Minimum Order Quantity: | 1000 pieces |
|---|---|
| Price: | To be Negotiable |
| Packaging Details: | By Wooden Case or Pallets or as customer's request |
| Delivery Time: | 35 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 10000pieces/per month |
| Standard: | ANSI B16.9/ ANSI B16.28 | Size: | NPS1/2”-120”(DN15-3000) |
|---|---|---|---|
| Thickness: | SCH5S/10S, SCH20/40/80/160, STD/XS/XXS, SGP | Material: | A53Gr.B A106GR.B |
| Connection: | Butt Welding,BW | Technics: | Forged |
| Surface: | Black/Varnish/Galvanized/Golden | Application: | Chemical Industry, Petroleum Industry, Construction Industry |
| High Light: | 9.53mm Long Radius Bend,12.7mm Long Radius Bend,1.5D Weld Bend Fittings |
||
Description:

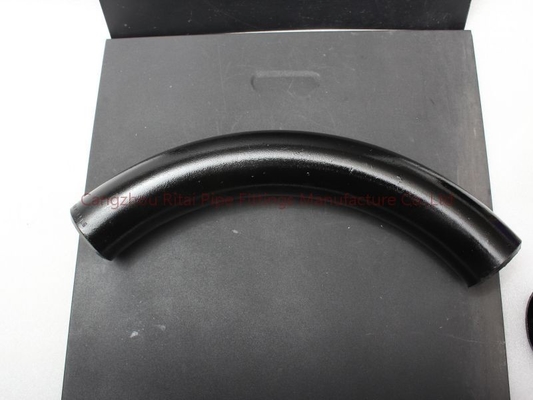

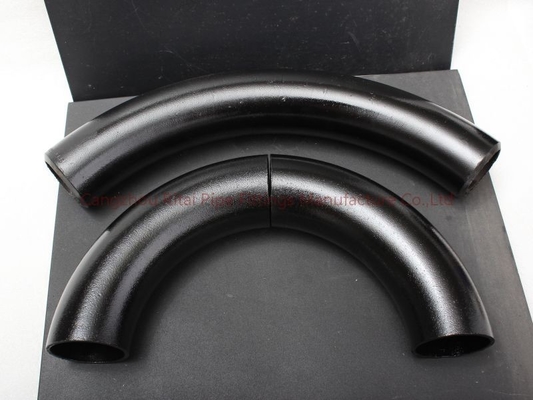

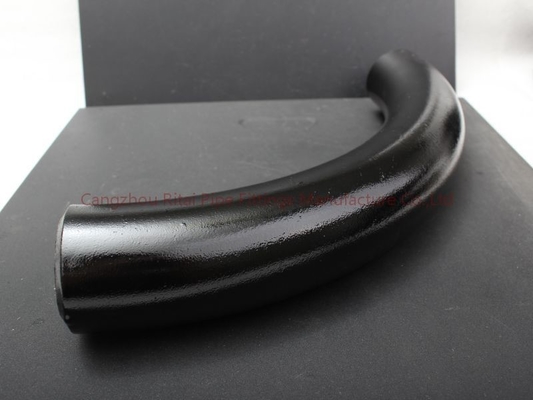

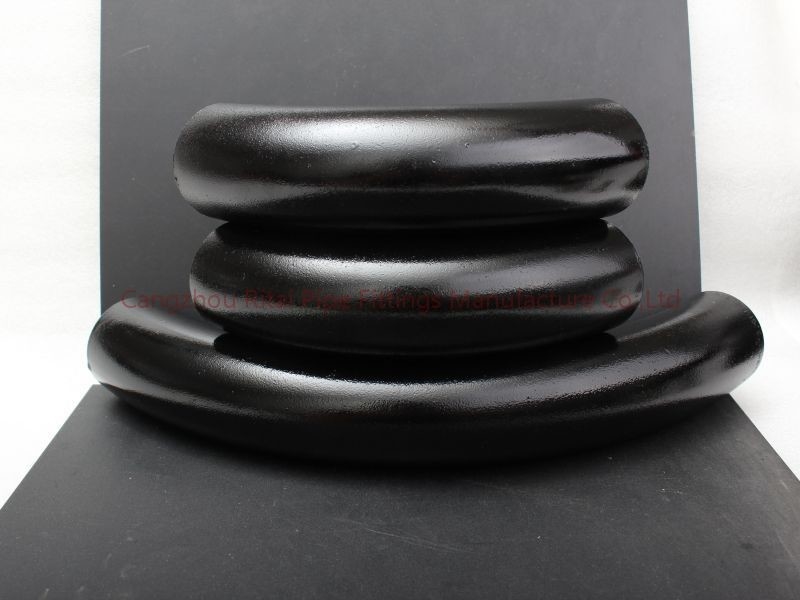

What is a 5D Bend?
Bend is the most common used butt weld fittings to change the direction of pipelines. 5D refers to the radius, D is the diameter of pipes. So 5D means a bend which radius is three times the diameter.
Steel pipe bend is a bending pipe that used to change the pipeline direction. Common use radius bend in 3D bend and 5D bend.
It is similar to pipe elbow, but differently, pipe bend is longer than elbow and usually manufactured for the specific needs.
Pipe bending radius: 3D bend, 5D bend, 6D, 8D and customized
Bending degree: 15°, 22.5°, 30°, 45°, 60°, 90°, 180° and customized
Specifications:
| TYPE | ASTM A106 GR B 3D ELBOW BEND, ASTM A234 WPB 3D ELBOW BEND, API 5L GR B ELBOW BEND, 3D 90degree bend, ANSI ELBOW BEND 3D 90D, 90 degree bend, ansi elbow bend, pipe bend, seamless bend, butt welded bend, carbon steel elbow bend(CS bend), mild steel elbow bend(MS bend)... |
| SIZE | NPS1/2”-120”(DN15-3000) |
| WALL THICKNESS | SCH5S/10S, SCH20/40/80/160, STD/XS/XXS, SGP……. |
| MATERIAL | carbon steel: ASTM A234 GR WPB, ASTM A106 GR B,ST37.2 , ST35.8…… |
| alloy steel: A234 WP5/WP9/WP11/WP22/WP91, A420 WPL6, A860 WHPY 42/52/60/65/70/80…… | |
| stainless steel: A403 WP304/TP304 , WP304L/TP304L , WP316/TP316 , WP316L/TP316L, WP321/TP321 , WP310/TP310….. | |
| STANDARD | ANSI B 16.9/ANSI B16.48/MSS SP43/MSS P75/JIS2311/JIS 2312/JIS2313/DIN2605/DIN2609/GB-12459/GB-T13401 etc… |
| we can also produce according to drawing by customers. | |
| SURFACE TREATMENT | Shot blasted, black painting, rust-proof oil, transparent oil, galvanizing,, hot galvanizing |
| PACKING | plywood cases, pallets, nylon bags or according to the customers' requirements |
| TRADE TERM | FOB, CNF&CFR, CIF |
| PAYMENT | TT or L/C |
| APPLICATION | Chemical industry, petroleum industry, construction industry, power industry, gas industry, shipbuilding ,domestic installation and other |
| CERTIFICATES | ISO-9001:2008 |
| ORIGIN | Yanshan, Cangzhou, Hebei, China |
| If you are interested in any of our products or would like to discuss a custom order , pls feel free to contact us .We are looking forward to forming successful business relationships with new clients in the near future | |
FAQ:
Q1: How to order?
1.To specity standard and the thickness.
2.To specity surface treatment.
3.To specity figure size and quantity.
Q2: After sales service?
Quality are promised.We have a dedicated after-sales department to be responsible for all subsequent work after delivery.
Q3: Can I have a sample order for pipe fittings?
Yes,we welcome sample order to test and check quality.Mixed samples are acceptable.
Q4:Do you offer guarantee for the products?
Yes,we offer almost 20 years warranty to our products.
