| Place of Origin: | Hebei,China |
| Brand Name: | RT |
| Certification: | CE Ped,ISO,BV,SGS |
| Model Number: | Elbow |
| Minimum Order Quantity: | 1ton |
|---|---|
| Price: | Negotiable |
| Packaging Details: | By Wooden Case or Pallets or as customer's request |
| Delivery Time: | 7-30 working days |
| Payment Terms: | T/T, L/C, D/P |
| Supply Ability: | 400tons/per month |
| Standard: | ASME/ANSI B16.9 B16.48 | Size: | 1/2''-48'' |
|---|---|---|---|
| Thickness: | Sch40 | Material: | ASME A234 WPB, WPC, ST37.2, ST54 |
| Usage: | Construction Industry/Chemical Industry/Petroleum Field/Nuclear Energy | Surface: | Oiled Or Painting, Rolling Sand |
| Technics: | Forged | Transport Package: | Wooden Case, Plywood Pallets, Etc |
| Specification: | 45deg; 90deg; 180deg | Type: | Elbow,Tee,Reducer,Cap... |
| High Light: | ASME Pipe Fitting Elbows,ST37.2 Pipe Fitting Elbows,180 Degree Steel Pipe Elbow |
||

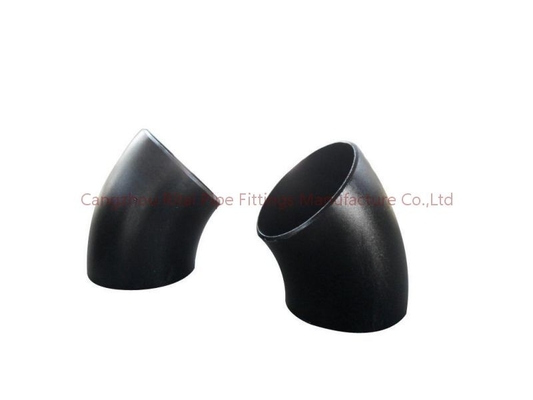

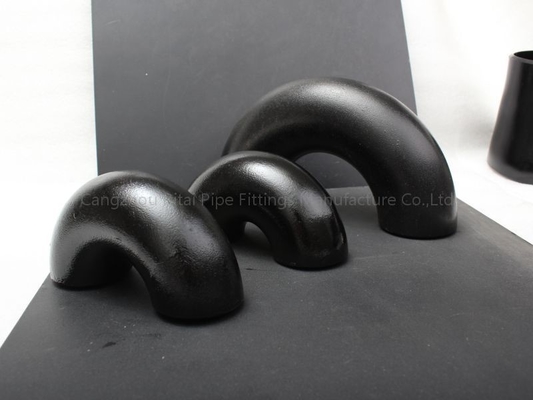

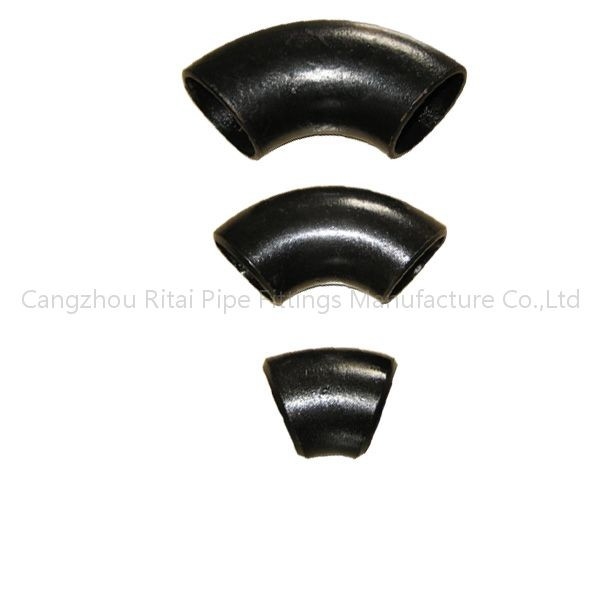

Carbon Steel Butt Welding Pipe Fitting 45/90/180 Degree Elbow
Description:
1. What Is A Pipe Elbow?
In the pipeline system, the pipe elbow is a pipe fitting that changes the direction of the pipeline. According to the angle, there are three most commonly used ones: 45°, 90°, and 180°. In addition, according to engineering needs, it also includes other abnormal angle elbows such as 60°.
2. What is a Carbon Steel Elbow?
Carbon steel elbow, first of all, according to its radius of curvature, can be divided into long radius elbow and short radius elbow. Long radius elbow refers to its radius of curvature equal to 1.5 times the outer diameter of the pipe, that is, R=1.5D. Short radius elbow means that its radius of curvature is equal to the outer diameter of the pipe, that is, R= 1.0D. (D is elbow diameter, R is the radius of curvature.) According to the pressure grade, there are about 17 kinds of pipe standards, which are the same as those in the United States: Sch5s, Sch10s, Sch10, Sch20, Sch30, Sch40s, STD, Sch40, Sch60, Sch80s, XS; Sch80, Sch100, Sch120, Sch140, Sch160, XXS.
Carbon steel butt-welding elbow is made of carbon steel pipe or carbon steel plate through hot pushing or welding. It is a metal pipe fitting that changes the direction of the pipeline on the carbon steel pipe. The connection method is welding. According to the angle, there are three most commonly used elbows: 45 °, 90 °, and 180 °, and other abnormal angle elbows such as 60 ° are also included according to the needs of the project.
Specifications:
| Type | Carbon Steel Butt Welding Pipe Fitting 45/90/180 Degree Elbow |
| SIZE | 1/2", 3/4", 1", 1 1/4", 1 1/2", 2", 2 1/2", 3", 3 1/2", 4", 5", 6", 8", 10", 12", 14", 16", 18", 20", 22", 24", 26", 28", 30", 32", 34", 36", 38", 40", 42", 44", 46", 48" |
| DN15, DN20, DN25, DN32, DN40, DN50, DN65, DN80, DN90, DN100, DN125, DN150, DN200, DN250, DN300, DN350, DN400, DN450, DN500, DN550, DN600, DN650, DN700, DN750, DN800, DN850, DN900, DN950, DN1000, DN1050, DN1100, DN1150, DN1200 | |
| WALL THICKNESS | Sch5s, Sch10s, Sch10, Sch20, Sch30, Sch40s, STD, Sch40, Sch60, Sch80s, XS; Sch80, Sch100, Sch120, Sch140, Sch160, XXS. |
| MATERIAL | Carbon steel: ASTM/ASME A234 WPB, WPC, ST37.2, ST54 Stainless steel: ASTM/ASME A403 WP 304-304L, WP 316-316L,WP 321, 201 |
| STANDARD | ANSI, ASME, GB, DIN, JIS, API |
| Surface Treatment | Oiled or Painting or Sandblast or Hot Galvanized |
| Service | OEM or ODM Service Available |
| Packing | Wooden case, pallet or as customers' requirement |
| Delivery Items | FOB(30% down payment in advance, the balance before shipment) CIF or CRF(30% in advance, the balance against with the copy of B/L) |
| Delivery Time | Within 15-45 days after receipt of advance payment |
| Application | Petroleum, chemical, power, gas, metallurgy, shipbuilding, construction, etc |
| Advantage | 1. More than 10 years of elbow manufacturing experience. 2. Near Tianjin Port and Tianjin Airport. 3. We provide: We have high-quality processing equipment. We promise on-time, stable quality, just price, client confidentiality. 4. With samples and order: We can offer dimension reports, material certification. |
How To Make Elbow From Pipe:
Butt weld fittings use seamless or welded pipe as the starting material and are forged (through multiple process) to get the shape of elbows, tees and reducers etc.Just as the pipe is sold from schedule 10 to schedule 160, butt weld fittings are sold the same way.
We are an excellent manufacturer, factory, supplier that mainly produces pipe fittings, flanges, supports, and hangers, as well as steel sleeve steel steam insulation pipelines, polyurethane prefabricated direct buried insulation pipelines and acts as an agent for the sales of steel pipes for many large enterprises such as Tiangang, Baotou Steel, Jinan Iron and Steel, and Taiyuan Iron and Steel. When procuring raw materials to manufacture Elbow Pipe, our primary responsibility is to ensure that same good quality and consistency exists in our supply base.
FAQ:
1.)Are you a trading company or Factory?
We are a real factory with our own producing machine and warehouse, started to do business from the year 1993
2.)How long time of your longer cooperation with customer?
Many customers have a long cooperation with us, such as European customer cooperated with us 15years.and more.
3.)What is your advantage?
Best quality, low price, special service, each customer information record.
Professional negotiation, reasonable price, and good after-sale service.
4.)What about your delivery time?
quantity less than 500tons,25days after getting the deposit, above 500tons will need 30-35 working days.
