| Place of Origin: | Hebei,China |
| Brand Name: | RT |
| Certification: | CE,ISO45001 |
| Model Number: | 5D Pipe Bends |
| Minimum Order Quantity: | 1000 pieces |
|---|---|
| Price: | To be Negotiable |
| Packaging Details: | Plywood Wooden Cases or Pallet |
| Delivery Time: | 35 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 10000pieces/per month |
| Standard: | ASME, ANSI, DIN, BS, API | Size: | 1/2" To 24" |
|---|---|---|---|
| Thickness: | Sch40 | Material: | Carbon Steel |
| Connection: | Butt Welding,BW | Technics: | Hot Forming, Push, Press, Forge, Cast, Etc. |
| Surface: | Transparent Oil, Rust-proof Black Oil Or Hot Galvanized,varnished Coated,etc. | Application: | Chemical Industry, Petroleum Industry, Construction Industry, Domestic Installation And Other |
| Certificates: | API CCS ISO BV NB ASME | Transport Package: | Plywood Wooden Cases Or Pallet |
| High Light: | ASME 5D Pipe Bends,180 Degree 5D Pipe Bends,Butt Welding 45 Degree Pipe Bend |
||

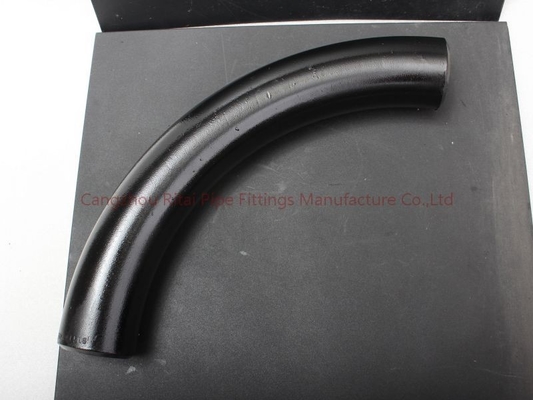

ASME 45 90 180 Degree 3D 5D 10d Carbon Steel Seamless Pipe Bend
Description:
What is ASME 45 90 180 Degree 3D 5D 10d Carbon Steel Seamless Pipe Bend?
Bend is the most common used butt weld fittings to change the direction of pipelines. 5D refers to the radius, D is the diameter of pipes. So 5D means a bend which radius is three times the diameter.
Steel pipe bend is a bending pipe that used to change the pipeline direction. Common use radius bend in 3D bend and 5D bend.
It is similar to pipe elbow, but differently, pipe bend is longer than elbow and usually manufactured for the specific needs.
Pipe bending radius: 3D bend, 5D bend, 6D, 8D and customized
Bending degree: 15°, 22.5°, 30°, 45°, 60°, 90°, 180° and customized
Specifications:
| INDUCTION BENDS SPECIFICATION REQUIREMENTS | ||
| GENERAL DESCRIPTION | ||
| Product Name | Large Size Steel Pipe Bend R=2D 3D 4D 5D 6D 7D 8D 9D 10D | |
| Outside Diameter | 1/2" to 80" | |
| Thickness | SCH20, SCH30, SCH40, STD, SCH80, SCH100. SCH120, SCH160. XXS | |
| Design Life | 30 Years | |
| Pipeline Design Code | ASME B31.4 / ASME 31.8 / ASME B16.49/ MSS-SP75 | |
| Service Fluid |
Full Well Stream, Offshore Shallow Water Application, Subject to Potential Late Souring and Eventual Bacteria induced Corrosion. |
|
| MOTHER PIPE REQUIREMENTS | ||
| Material | Stainless steel pipe/Carbon steel pipe/Alloy steel pipe | |
| Grade | Stainless steel | AISI 201, 202, 304, 304L, 316, 316L,430 Etc. |
| Carbon Steel | Gr.B/X42/X46/X52/X60/X70 etc.(PSL1 & PSL2) | |
| Alloy Steel | Nickel base alloy | |
| Specification | Stainless steel | ASTM A554/A270/A312/A249/A269 ETC |
| Carbon Steel | API 5L,A106,A53,Etc. | |
FAQ:
Q1: How to order?
1.To specity standard and the thickness.
2.To specity surface treatment.
3.To specity figure size and quantity.
Q2: After sales service?
Quality are promised.We have a dedicated after-sales department to be responsible for all subsequent work after delivery.
Q3: Can I have a sample order for pipe fittings?
Yes,we welcome sample order to test and check quality.Mixed samples are acceptable.
Q4:Do you offer guarantee for the products?
Yes,we offer almost 20 years warranty to our products.
