| Place of Origin: | Hebei,China |
| Brand Name: | RT |
| Certification: | CE,ISO45001 |
| Model Number: | 5D Pipe Bends |
| Minimum Order Quantity: | 1000 pieces |
|---|---|
| Price: | To be Negotiable |
| Packaging Details: | plywood cases, pallets, nylon bags or according to the customers' requirements |
| Delivery Time: | 35 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 10000pieces/per month |
| Standard: | ANSI B16.9, ANSI B16.28, JIS B2311, DIN 2605, 2615, 2616, And 2617,EN10253 | Size: | 1/2'' To 72''/DN15-DN3600 |
|---|---|---|---|
| Thickness: | Sch5-SchXXS ,such As SCH20, SCH40, STD, SCH80, SC100, SCH120, And SCH160 | Material: | Carbon Steel, Stainless Steel, Alloy Steel |
| Connection: | Butt Welding,BW | Technics: | Welded, Bending,forged,exturd |
| Surface: | Black Paint, Varnish, Rust-proof Oil, And Hot-dipped Galvanized | Application: | Chemical Industry, Petroleum Industry, Construction Industry, Domestic Installation And Other |
| Certificates: | API CCS ISO BV NB ASME | Transport Package: | Pallet, Wooden Case |
| High Light: | DIN2605 Long Radius 90 Bend,ST37.2 Long Radius 90 Bend,Sch 80 Long Radius Pipe Bends |
||
Description:

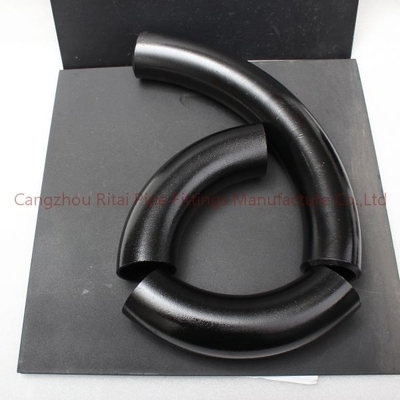

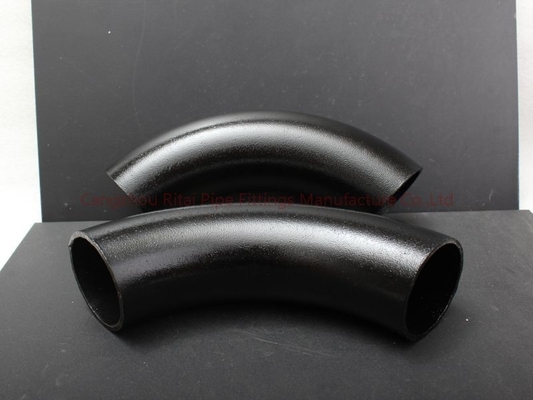

What is a DIN2605 DIN BS EN 10253 ST37.2 Carbon 90 Degree 3D 5D Steel Pipe Bends?
Bend is the most common used butt weld fittings to change the direction of pipelines. 5D refers to the radius, D is the diameter of pipes. So 5D means a bend which radius is three times the diameter.

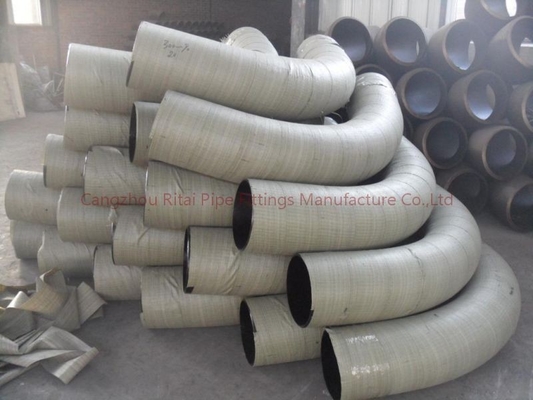

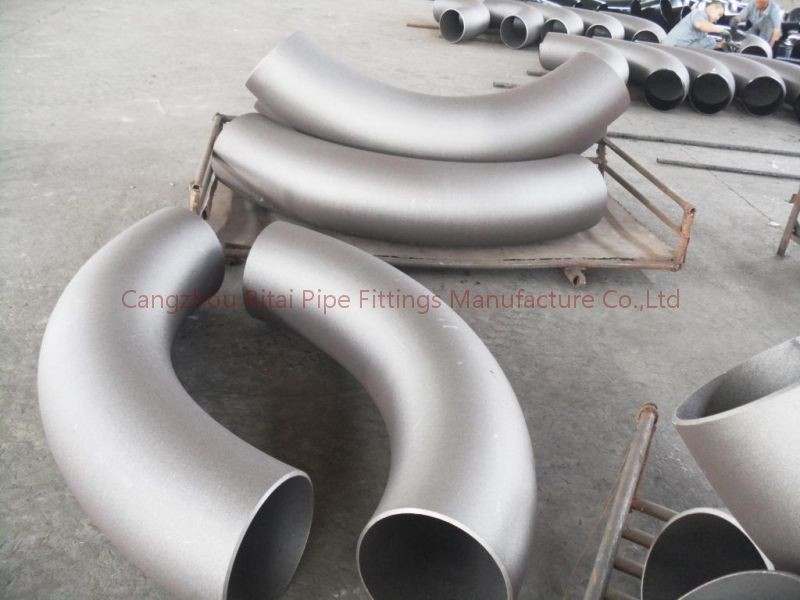

Steel pipe bend is a bending pipe that used to change the pipeline direction. Common use radius bend in 3D bend and 5D bend.
It is similar to pipe elbow, but differently, pipe bend is longer than elbow and usually manufactured for the specific needs.
Pipe bending radius: 3D bend, 5D bend, 6D, 8D and customized
Bending degree: 15°, 22.5°, 30°, 45°, 60°, 90°, 180° and customized
Specifications:
| Material | carbon steel, stainless steel, alloy steel |
| Technique | welded, bending,forged,exturd |
| Connection | welding |
| Head code | bevel the end |
| Size | 1/2'' to 72''/DN15-DN3600 |
| Angles | elbows,bend,tee,cross,reducers,cap,pipe, flanges,socket steel fittings,nipple |
| WT | Sch5-SchXXS ,such as SCH20, SCH40, STD, SCH80, SC100, SCH120, and SCH160 |
| Standard | ANSI,ASME,API5L,DIN,JIS,BS,GB we can also produce according to drawing |
| Specification standards | ANSI B16.9, ANSI B16.28, JIS B2311, DIN 2605, 2615, 2616, and 2617,EN10253 |
| Min Order Quantity | According to customer's requirement |
| Types | 45 and 90° LR/SR elbows, 180° returns, straight, reducing tees, caps, concentric and eccentric reducers |
| Radius Of Curvature | 1D-10D Elbow, ANSI,ASME,API5L,DIN,JIS,BS,GB |
| Surface treatment | black paint, varnish, rust-proof oil, and hot-dipped galvanized |
| Range Of Application | Chemical industry, petroleum industry, construction industry, domestic installation and other |
| Certificates | API CCS ISO BV NB ASME |
| Special design available as requirement | |
FAQ:
Q1: How to order?
1.To specity standard and the thickness.
2.To specity surface treatment.
3.To specity figure size and quantity.
Q2: After sales service?
Quality are promised.We have a dedicated after-sales department to be responsible for all subsequent work after delivery.
Q3: Can I have a sample order for pipe fittings?
Yes,we welcome sample order to test and check quality.Mixed samples are acceptable.
Q4:Do you offer guarantee for the products?
Yes,we offer almost 20 years warranty to our products.
