| Place of Origin: | Hebei,China |
| Brand Name: | RT |
| Certification: | CE,ISO45001 |
| Model Number: | 3D Pipe Bends |
| Minimum Order Quantity: | 100 pieces |
|---|---|
| Price: | To be Negotiable |
| Packaging Details: | By Wooden Case or Pallets or as customer's request |
| Delivery Time: | 35 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 10000pieces/per month |
| Model Number: | ASTM A234 | Size: | DN10-DN1200 |
|---|---|---|---|
| Thickness: | SCH10-XXS | Material: | A53Gr.B A106GR.B |
| Connection: | Butt Welding | Head Code: | Round |
| Loading Port: | Tianjin Xingang,China | Degree: | 30,45,60,90,180 |
| Application: | Chemical,petroleum Industry | Surface: | Shot Blasted, Black Painting, Rust-proof Oil |
| High Light: | XXS 3D Pipe Bends,ST37.2 3D Pipe Bends,3D 90 Degree Elbow |
||

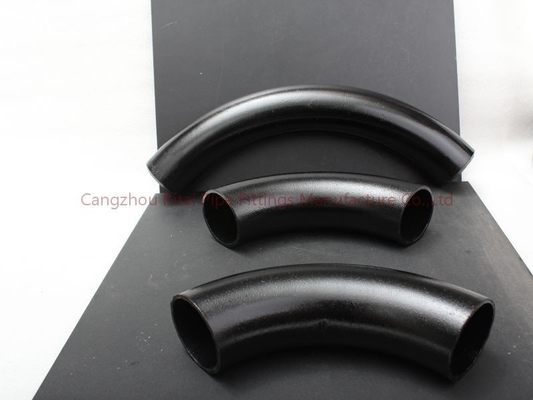

90Degree 3D Pipe Bends DIN BS ST37.2 Carbon 90 Degree 3d Steel Pipe Bend
Description:
3D pipe bending is a pipe bend that the bend radius is 3 times the pipe outside diameter.The radius of a 5D pipe bend is actually what is 5 tims the nominal diameter. So if you had a 10″ diameter pipe, the radius of the centerline of the bend would be 50 inches. Larger numbers have smoother curves.
Specifications:
| Material | carbon steel, stainless steel, alloy steel |
| Technique | welded, bending,forged,exturd |
| Connection | welding |
| Head code | bevel the end |
| Size | 1/2'' to 72''/DN15-DN3600 |
| Angles | elbows,bend,tee,cross,reducers,cap,pipe, flanges,socket steel fittings,nipple |
| WT | Sch5-SchXXS ,such as SCH20, SCH40, STD, SCH80, SC100, SCH120, and SCH160 |
| Standard | ANSI,ASME,API5L,DIN,JIS,BS,GB we can also produce according to drawing |
| Specification standards | ANSI B16.9, ANSI B16.28, JIS B2311, DIN 2605, 2615, 2616, and 2617,EN10253 |
| Min Order Quantity | According to customer's requirement |
| Types | 45 and 90° LR/SR elbows, 180° returns, straight, reducing tees, caps, concentric and eccentric reducers |
| Radius Of Curvature | 1D-10D Elbow, ANSI,ASME,API5L,DIN,JIS,BS,GB |
| Surface treatment | black paint, varnish, rust-proof oil, and hot-dipped galvanized |
| Range Of Application | Chemical industry, petroleum industry, construction industry, domestic installation and other |
| Certificates | CE ISO9001,ISO 14001,ISO 45001 |
|
Special design available as requirement |
|
FAQ:
Q1:What kind of information do you need for a quotation?
PS: Please provide us product type or standard code,material,size and quantity etc.;drawings or samples for customized ones.
Q2: Will you share our data with others?
PS: NO. We value our customers' privacy highly.
Q3: Do you provide samples?
PS: Yes, we can provide samples, some for free some not, and not cover freight cost.
Q4: How do you control the quality?
PS: We have a fully equiped profesional QC team and a advanced certificate process.
Q5: What's the lead time?
PS: Typically ship within 35 days after payment, depends on order sizes too. Customized products and out of stock ones varies by each order. We strive to satisfy every customer's shipping expectation.
Q6: How about shipping?
PS: We can provide options and you can choose any available method meets your demand,by sea, by air or transportation.
Q7: What is your terms of payment ?
PS: 30% TT in advance,70% against copy of B/L.
