| Place of Origin: | Hebei,China |
| Brand Name: | RT |
| Certification: | CE,ISO45001,ISO9001 |
| Model Number: | 3D Pipe Bends |
| Minimum Order Quantity: | 50 pieces |
|---|---|
| Price: | To be Negotiable |
| Packaging Details: | By Wooden Case or Pallets or as customer's request |
| Delivery Time: | 35 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 10000pieces/per month |
| Standard: | ANSI,DIN,JIS,BS, | Size: | 1/2'' 1'' 2'' To 48'' |
|---|---|---|---|
| Thickness: | Std | Material: | A53Gr.B,A106GR.B |
| Technics: | Forged | Connection: | Welding |
| Surface: | Black,rust Oil | Application: | Petroluem,ship Building,gas ,electric Power,pipe Project |
| High Light: | 22.5 Degree 3D Pipe Bends,A53Gr.B 3D Pipe Bends,45 Degree LR Elbow |
||

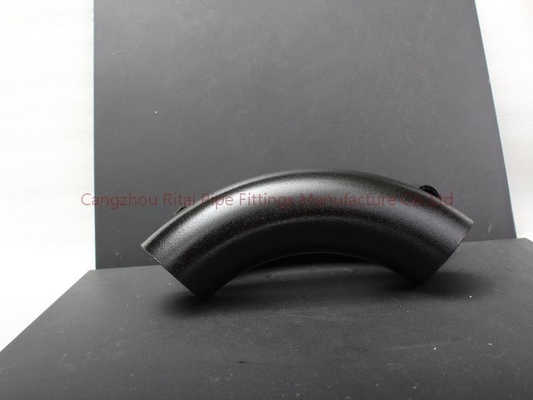

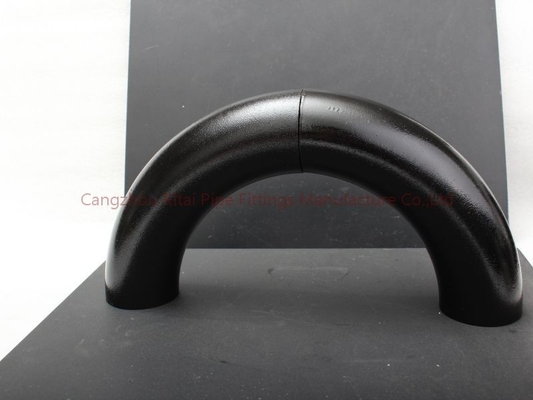

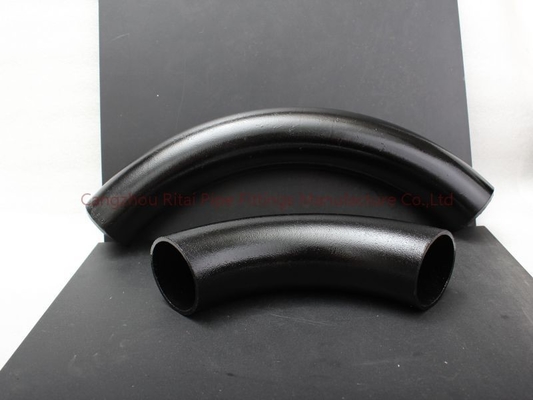

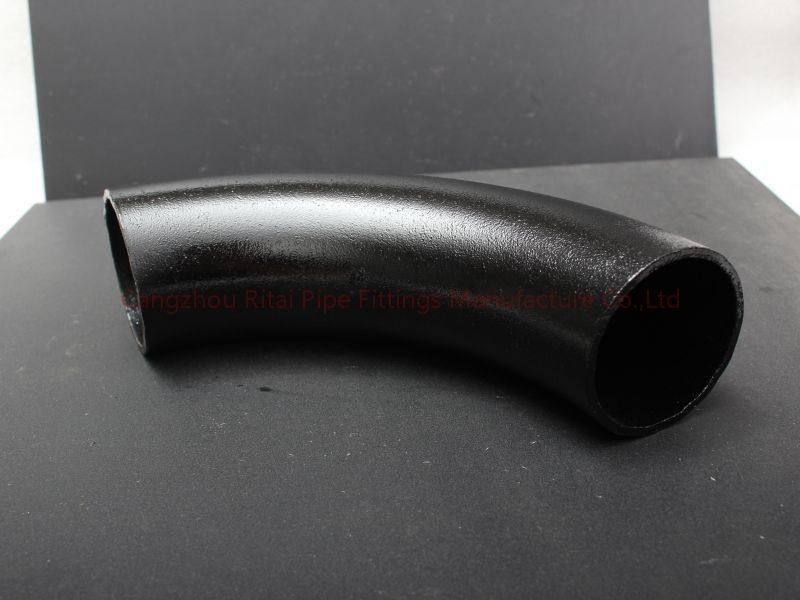

Bend 45degree Pipe Bend 22.5 45 90 120degree 3D Pipe Bends Steel Fittings
Description:
3D Bend is bend radius 3 times of the pipe outside diameter. for example if a 3D pipe bend used in a 10 inch pipelines, the bending radius would be 30 inches. Same with elbow (1D or 1.5D), 3D bend also ranges different degrees like 45 degree, 60 Degree and 90 Degree.
Specifications:
|
Bending Radius (R) |
R=3D, 5D, 6D, 8D, 7D, 10D, 12D |
| Technique | welded, bending,forged,exturd |
| Connection | welding |
| Head code | bevel the end |
| Size | 1/2'' to 72''/DN15-DN3600 |
|
Angles |
15°, 30°, 45°, 60°, 90°, 135°, 180° |
| WT | Sch5-SchXXS ,such as SCH20, SCH40, STD, SCH80, SC100, SCH120, and SCH160 |
| Standard | ANSI,ASME,API5L,DIN,JIS |
| Specification standards | ANSI B16.9, ANSI B16.28, JIS B2311, DIN 2605, 2615, 2616, and 2617,EN10253 |
| Types | 45 and 90° LR/SR elbows, 180° returns, straight, reducing tees, caps, concentric and eccentric reducers |
| Radius Of Curvature | 1D-10D Elbow, ANSI,ASME,API5L,DIN,JIS,BS,GB |
| Surface treatment | black paint, varnish, rust-proof oil, and hot-dipped galvanized |
| Range Of Application | Chemical industry, petroleum industry, construction industry, domestic installation and other |
| Certificates | CE ISO9001,ISO 14001,ISO 45001 |
FAQ:
Q1:What kind of information do you need for a quotation?
PS: Please provide us product type or standard code,material,size and quantity etc.;drawings or samples for customized ones.
Q2: Will you share our data with others?
PS: NO. We value our customers' privacy highly.
Q3: Do you provide samples?
PS: Yes, we can provide samples, some for free some not, and not cover freight cost.
Q4: How do you control the quality?
PS: We have a fully equiped profesional QC team and a advanced certificate process.
Q5: What's the lead time?
PS: Typically ship within 35 days after payment, depends on order sizes too. Customized products and out of stock ones varies by each order. We strive to satisfy every customer's shipping expectation.
Q6: How about shipping?
PS: We can provide options and you can choose any available method meets your demand,by sea, by air or transportation.
Q7: What is your terms of payment ?
PS: 30% TT in advance,70% against copy of B/L.
Contact Person: Rachael
Tel: 86-532 85761028
