| Place of Origin: | Hebei,China |
| Brand Name: | RT |
| Certification: | CE,ISO,BV,SGS |
| Model Number: | Big Size Elbow |
| Minimum Order Quantity: | 5ton |
|---|---|
| Price: | To be Negotiable |
| Packaging Details: | Big size need naked with woven bags or By Wooden Pallets |
| Delivery Time: | 30-35 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 200tons/per month |
| Standard:: | ANSI, ASTM, DIN, JIS, BS, ISO, GB | Bend Size: | 48" (1200 NB) To 72'' |
|---|---|---|---|
| Material: | A234 WPB | Connection:: | Welding |
| Usage: | Joining Pipe Lines | Surface: | Paint Spraying |
| End: | Bevel End | Package: | Bundle |
| High Light: | ANSI Large Pipe Elbows,XS Large Pipe Elbows,90 Degree Elbow Long Radius |
||

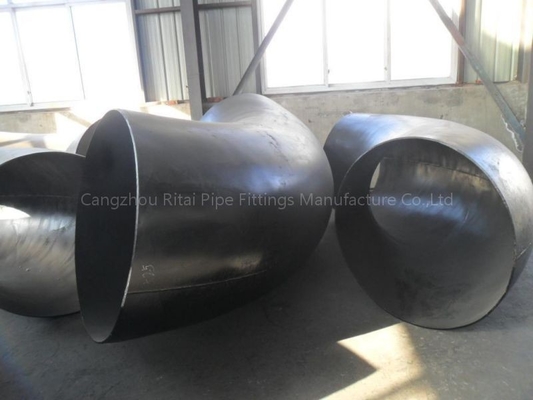

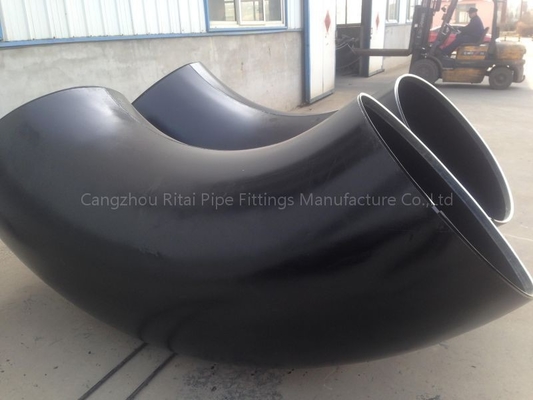

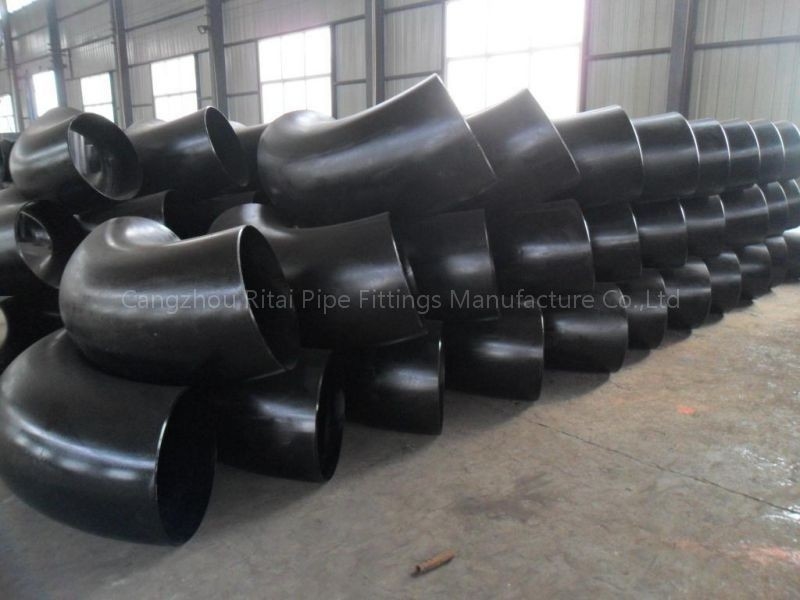

Large Pipe Elbows of Chemical Industrial Pipe Lined Lining Steel 90° 45 ° Elbow
Description:
Large Pipe Elbows of Chemical Industrial Pipe Lined Lining Steel 90° 45 ° Elbow is mainly used to connect two sections of pipes with different end face radii or to change the diameter of pipes. This type of elbow generally needs to be produced according to specific engineering requirements or specific drawings. In addition to meeting the requirements of the pipe diameter, the specific conditions of the pipeline must also be considered, such as pipeline transportation pressure, fluid viscosity, abrasion, corrosiveness, and fluid transportation. temperature and other factors.
Specifications:
| Product Type | Large Pipe Elbows of Chemical Industrial Pipe Lined Lining Steel 90° 45 ° Elbow |
| Product Degree | 30,45,60,90,180 etc. |
| Size | 48" (1200 NB) to 144" (3400NB) |
| Applied Field | Petrochemical industry;aviation and aerospace industry; pharmaceutical industry; gas exhaust; power plant; ship building etc |
| Wall Thickness | STD, XS |
| Surface Treatment | Black painting, transparent oil |
| Advantage | high quality; faster delivery time; available in all sizes, customized; |
| Packing | Free Fumigation Wooden Pallets, big size need naked with woven bags |
Elbow is a kind of pipe fitting commonly used in pipeline installation to provide flexibility to change the pipe direction.
It connects two pipes of the same nominal diameter or different diameters, so that the pipe bends at a certain angle, usually 90 or 45 degrees. The ends may be machined for butt welding threaded or socketed. When the ends differ in size, it is known as a reducer elbow.
According to bend degree, there are 90-degree elbows and 45-degree elbows; according to length, there are long radius elbows and short radius elbows.
Due to the elbow with good comprehensive performance, it is widely used in the chemical industry, building, water supply, water drainage, oil, light and heavy industry, freezing, sanitary, plumbing, fire protection, electric power, aerospace, shipbuilding, and other infrastructure projects.
| Butt welding pipe fittings - Elbow | |
| Standards | ASME/ANSI B16.9, ASME/ANSI B16.11, ASME/ANSI B16.28,JIS B2311, JIS B2312, DIN 2605, DIN 2615, DIN 2616, DIN 2617, BS 4504, GOST 17375, GOST 30753, GOST 17378 |
| Bending radius | Short Radius(SR), Long Radius(LR), 2D, 3D, 5D, multiple |
| Degree | 45 / 90 / 180, or customized degree |
| Size Range | Seamless type: ½" up to 28" |
| Welded type: 28"-to 72" | |
| WT Schedule | SCH STD,SCH10 to SCH160, XS, XXS, |
| Carbon Steel | A234 WPB, WPC; A106B, ASTM A420 WPL9, WPL3, WPL6, WPHY-42WPHY-46, WPHY-52, WPHY-60, WPHY-65, WPHY-70, |
| Alloy Steel | A234 WP1, WP11, WP12, WP22, WP5, WP9, WP91 |
| Stainless Steel | ASTM A403 WP304/304L, WP316/316L, WP321, WP347, WPS 31254 |
| Applications | Petroleum industry, chemical, power plant, gas piping, shipbuilding. construction, sewage disposal,and nuclear power etc. |
| Packaging material | plywood cases or pallets, or as per customer's requirements |
| Production Period | 2-3weeks for normal orders |
FAQ:
Q1: Wonder if you accept small orders?
A1: Do not worry. Feel free to contact us .in order to get more orders and give our clients more convener, we accept small order.
Q2: Can you send products to my country?
A2: Sure, we can. If you do not have your own ship forwarder, we can help you.
Q3: Can you do OEM for me?
A3: We accept all OEM orders, just contact us and give me your design. we will offer you a reasonable price and make samples for you ASAP.
Q4: What are your payment terms?
A4: By T/T, LC AT SIGHT,30% deposit in advance, balance 70% before shipment.
Q5: How can I place the order?
A5: First sign the PI, pay a deposit, then we will arrange the production. After finished production needs you to pay the balance. Finally, we will ship the Goods.
Q6: When can I get the quotation?
A6: We usually quote you within 24 hours after we get your inquiry. If you are very urgent to get the quotation. Please call us or tell us in your mail, so that we could regard your inquiry priority.
