| Place of Origin: | Hebei,China |
| Brand Name: | RT |
| Certification: | CE,ISO,BV,SGS |
| Model Number: | Big Size Elbow |
| Minimum Order Quantity: | 5ton |
|---|---|
| Price: | To be Negotiable |
| Packaging Details: | Big size need naked with woven bags or By Wooden Pallets |
| Delivery Time: | 30-35 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 200tons/per month |
| Standard:: | ASME, ANSI, DIN, JIS, BS, GB, KS, API | Bend Size: | 48" (1200 NB) To 110" |
|---|---|---|---|
| Material: | Carbon Steel,A420 WPL6 | Connection:: | Welding |
| Usage: | Petroleum/Power/Chemical/Construction/Gas/Metallurgy/Shipbuilding Etc | Surface: | Black Painting |
| Thickness: | SCHSTD | Package: | According To The Packing Requirement Of Clients |
| High Light: | Seamless Long Radius 90 Degree Bend,ASTM A420 Long Radius 90 Degree Bend,SCH40 CS Pipe Elbow |
||

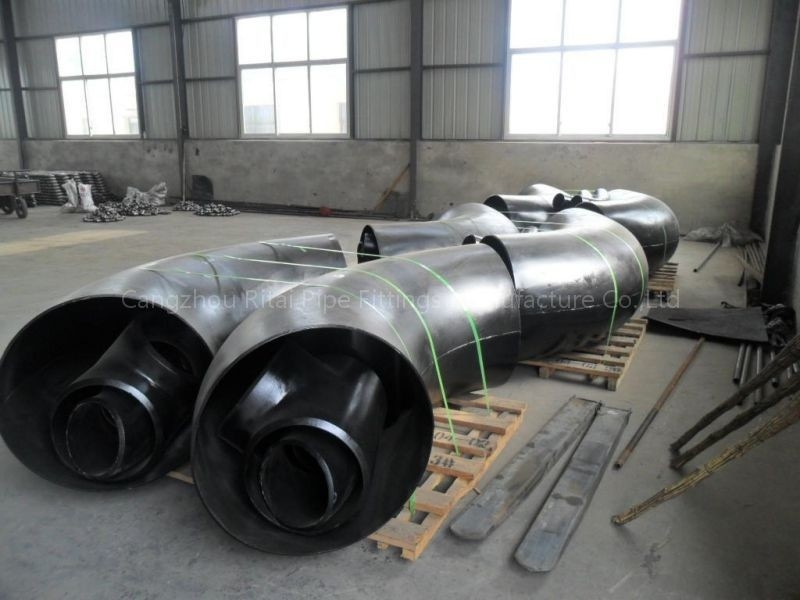

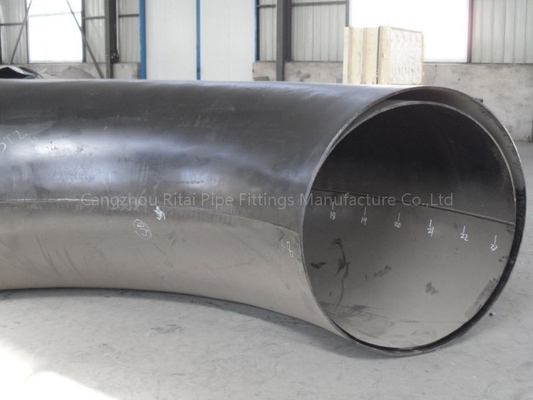

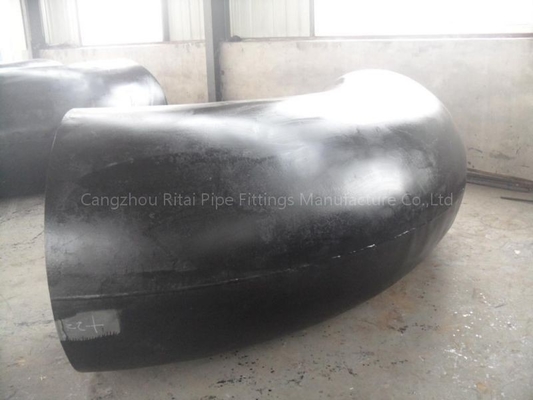

Large Steel Elbow Big Size Large Carbon Steel Elbow 45/90/180 Degree Elbow
Description:
Large Steel Elbow Big Size Large Carbon Steel Elbow 45/90/180 Degree Elbow is a kind of pipe fitting commonly used in pipeline installation to provide flexibility to change the pipe direction.
It connects two pipes of the same nominal diameter or different diameters, so that the pipe bends at a certain angle, usually 90 or 45 degrees. The ends may be machined for butt welding threaded or socketed. When the ends differ in size, it is known as a reducer elbow.
According to bend degree, there are 90-degree elbows and 45-degree elbows; according to length, there are long radius elbows and short radius elbows.
Due to the elbow with good comprehensive performance, it is widely used in the chemical industry, building, water supply, water drainage, oil, light and heavy industry, freezing, sanitary, plumbing, fire protection, electric power, aerospace, shipbuilding, and other infrastructure projects.
Specifications:
| Product Type | Large Steel Elbow Big Size Large Carbon Steel Elbow 45/90/180 Degree Elbow |
| Product Degree | 30,45,60,90,180 etc. |
| Size | 48" (1200 NB) to 144" (3400NB) |
| Applied Field | Petrochemical industry;aviation and aerospace industry; pharmaceutical industry; gas exhaust; power plant; ship building etc |
| Wall Thickness | STD, XS |
| Surface Treatment | Black painting, transparent oil |
| Advantage | high quality; faster delivery time; available in all sizes, customized; |
| Packing | Free Fumigation Wooden Pallets, big size need naked with woven bags |
| Elbow Type | Large Steel Elbow Big Size Large Carbon Steel Elbow 45/90/180 Degree Elbow |
| Standard |
ASME B16.9, ASME B16.11, ASME B16.5; JIS B2311,JIS B2312,JIS B2313,JIS B2316; MSS SP-43, MSS SP-95, MSS SP-75, MSS SP-79; ISO 3419,ISO 5251,DIN 2615 SY/T 0510, SH 3408, SH3410 |
| Size | 1/2''-48''(Butt-welding and seamless);1/8''-4''(Threaded and socket-welding); 16''~72''(Welded) |
| Wall thickness | SCH10,SCH20,SCH30,STD,SCH40,SCH60,XS,SCH100,SCH120,SCH40,SCH160,XXS |
| Manufacturing process | Hot forming, Push, Press, Forge, Cast, etc. |
|
Material
Carbon steel
Stainless steel |
Carbon steel elbow, stainless steel elbow, alloy steel elbow |
|
ASTM A234 WPB, ASTM A420 WPL6, WPL3; ASTM A105 WPB; ASTM A106; |
|
|
ASTM A403 WP304, A403 WP304L, A403 WP316, A403 WP316L, A403 WP321 ASTM A182 F 304, 304L,316, 316L,904L |
|
| Packing |
1)seaworthy wooden box for fittings with size from 1/2"~14" 2)Seaworthy wooden pallet for fittings with size above 14" 3)According to the packing requirement of clients |
| Delivery time | with in 10-30 work days after received the deposit or L/C |
| Shipment | FOB Tianjin, CFR, CIF, etc |
| Application | Petroleum/Power/Chemical/Construction/Gas/Metallurgy/Shipbuilding etc |
| Remarks | Other materials and drawings are available. |
