| Place of Origin: | Hebei,China |
| Brand Name: | RT |
| Certification: | CE,ISO,BV,SGS etc |
| Model Number: | Plate Flange |
| Minimum Order Quantity: | 2 tons |
|---|---|
| Price: | Negotiable |
| Packaging Details: | By Wooden Case or Pallets or as customer's request |
| Delivery Time: | 35 working days |
| Payment Terms: | T/T, L/C, D/P |
| Supply Ability: | 300tons /per month |
| Product Name: | Forged Steel Plate Flange | Standard: | JIS B2220 |
|---|---|---|---|
| Size: | 1/2''~72'' | Material: | A105 Q235 SS400 |
| Pressure: | JIS 5K, JIS10K,JIS 16K | Application: | Petrochemical Industry |
| Surface: | Anti-rust Transparent Oiled Or Black Paint | Cert: | CE,ISO9001,ISO14001,ISO45001 |
| High Light: | 5K Steel Plate Flange,JIS B2220 Steel Plate Flange,SS400 Flange 12 Inch Class 300 |
||

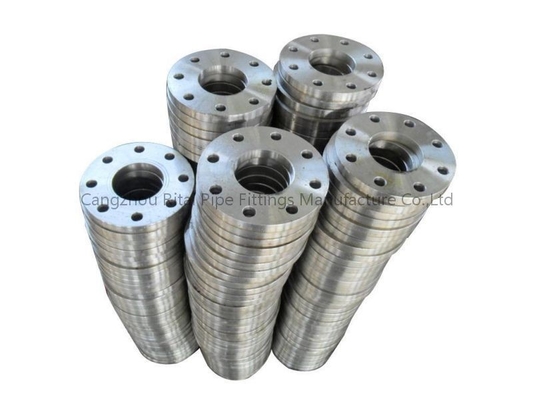

CS Steel flat flange JISB2220 5K 10K SS400 Carbon Steel Plate Flange
Description:

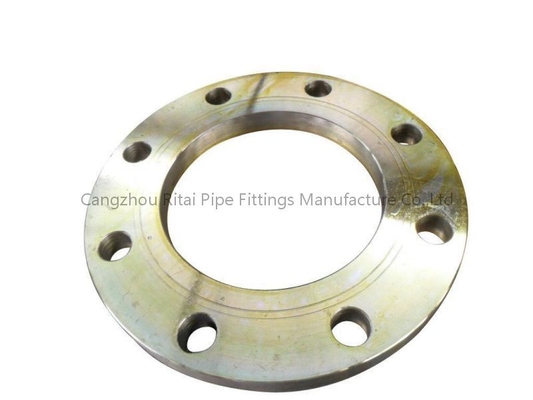

Plate flange is also named plain flange, flat flange and slip on flange etc. A plate flange is a flat, circular disk that is welded onto the end of a pipe and allows it to be bolted to another pipe. Typically used in fuel and water pipelines, the two plate flanges will be bolted together with a gasket in between them. The plate flange will have bolt holes all around the perimeter and will be used to create junctions, tees and joints.
Standard: JIS B2220
Size: 15mm to 6,000mm.
Flange Facing: RF, FF, RTJ. etc.
Materials: SS400
Process: Forged
Painting: yellow paint, black paint, anti-rust oil .
Flange Standard:
| NO. | FLANGE STANDARD | SIZE | PRESSURE RATING |
| 1 | ANSI/ASME FLANGE B16.5 | 1/2"-24" |
LBS: 150 300 400 600 900 1500 2500 |
| 2 | ORIFICE FLANGE B16.36 | 1"-24" | LBS: 300 400 600 900 1500 2500 |
| 3 |
LONG WELDING NECK FLANGES B16.5 |
1/2"-24" | LBS: 150 300 400 600 900 1500 2500 |
| 4 | ASMEB16.47-A(MSS FLANGE) | 26"-60" | LBS: 150 300 400 600 900 |
| 5 | ASME B16.47-B(API FLANGE) | 26"-60" | LBS: 75 150 300 400 600 900 |
| 6 | AWWA C207 FLANGE | 4"-120" | TABLE 2,3,4 CLASS B&D |
| 8 | SPACER AND BLANK B16.48 | 1/2"-36" | LBS: 150 300 400 600 |
| 9 | BS 4504 FLANGE | DN10-2000 | PN: 6 10 16 25 40 |
| 10 | SABS 1123 FLANGE | DN10-600 | KPA: 600 1000 1600 2500 4000 |
| 11 | JIS B2220 FLANGE | DN10-1500 | 5K 10K 16K 20K 30K 40K |
| 16 | DIN FLANGE | DN10-4000 |
PN: 1 2.5 6 10 16 25 40 64 100 160 250 320 400 |
| 17 | EN1092 PL | DN10~DN600 | PN6 PN10 PN16 PN25 PN40 PN63 PN100 |
FAQ:
1.)Are you a trading company or Factory?
We are a real factory with our own producing machine and warehouse,started to do business from year 1993
2.)How long time of your longer cooperation customer?
Many customers have long cooperation with us,such as European customer cooperated with us 15years.and more.
3.)What is your advantage?
Best quality,low price,special service,each customer information record.
4.)What about your delivery time?
quantity less than 500tons,25days after get deposit,above 500tons will need 30-35 working days.
