| Place of Origin: | Hebei,China |
| Brand Name: | RT |
| Certification: | CE,ISO,BV,SGS etc |
| Model Number: | Plate Flange |
| Minimum Order Quantity: | 1000pieces |
|---|---|
| Price: | Negotiable |
| Packaging Details: | By Wooden Case or Pallets or as customer's request |
| Delivery Time: | 7-30 working days |
| Payment Terms: | T/T, L/C, D/P |
| Supply Ability: | 10000 pieces/per week |
| Type: | Plate/Flat | Standard: | BS DIN, MSS, JIS, ASME |
|---|---|---|---|
| Pressure: | PN6 PN10 PN16 5K 10K Etc | Material: | A105 Q235 SS400 |
| Application: | Link Pipes | Surface: | Anti-rust Transparent Oiled Or Black Paint |
| High Light: | PN6 Steel Plate Flange,ASME Steel Plate Flange,MS 6 Inch Pipe Flange |
||
MS FLANGE FORGING STEEL PLATE FLANGE 6 INCH PIPE FLANGE DIN A105 FLANGE
Description:

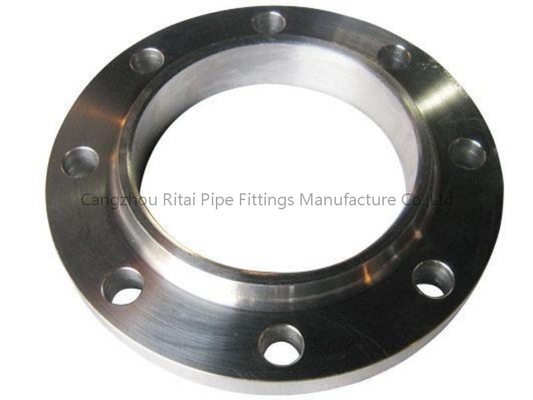

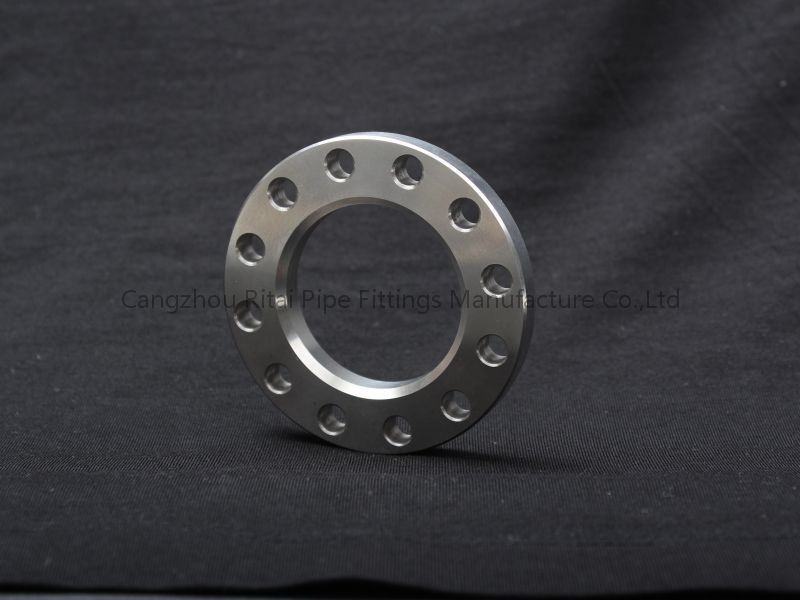

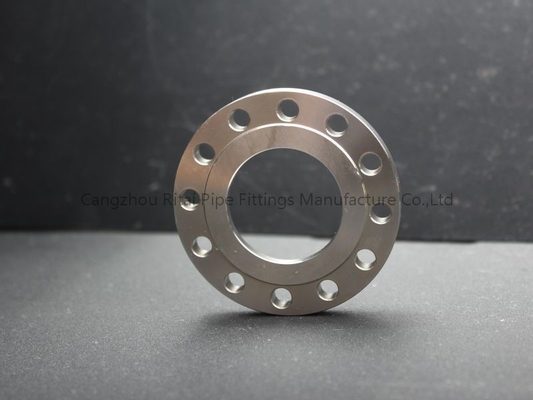

Steel plate flange is a flat, circular disk that is welded onto the end of a pipe and allows it to be bolted to another pipe.
Application:
Used for the connection between the tube end in chemical, construction, water supply, drainage, oil and gas, light and heavy industrial, refrigeration, sanitation, plumbing, fire protection, electrical, aerospace, shipbuilding and other infrastructure projects
Type:
Welding Neck(WN), Plate(PL), Slip On(SO), Blind(BL), Socket Welding(SW),
Threaded(THD), LapJoint(LJ), Long Welding Neck(LWN)
Widely Used Material for Plate Flange:
Stainless Steel: A182 F304/310/316
Carbon Steel: A105 SS400 Q235 P245GH P265GH
Alloy Steel: A182 F5/F9/F11/F22/F51/F53
Common Flange Standard:
| NO. | FLANGE STANDARD | SIZE | PRESSURE RATING |
| 1 | ANSI/ASME FLANGE B16.5 | 1/2"-24" |
LBS: 150 300 400 600 900 1500 2500 |
| 2 | ORIFICE FLANGE B16.36 | 1"-24" | LBS: 300 400 600 900 1500 2500 |
| 3 |
LONG WELDING NECK FLANGES B16.5 |
1/2"-24" | LBS: 150 300 400 600 900 1500 2500 |
| 4 | ASMEB16.47-A(MSS FLANGE) | 26"-60" | LBS: 150 300 400 600 900 |
| 5 | ASME B16.47-B(API FLANGE) | 26"-60" | LBS: 75 150 300 400 600 900 |
| 6 | AWWA C207 FLANGE | 4"-120" | TABLE 2,3,4 CLASS B&D |
| 8 | SPACER AND BLANK B16.48 | 1/2"-36" | LBS: 150 300 400 600 |
| 9 | BS 4504 FLANGE | DN10-2000 | PN: 6 10 16 25 40 |
| 10 | SABS 1123 FLANGE | DN10-600 | KPA: 600 1000 1600 2500 4000 |
| 11 | JIS B2220 FLANGE | DN10-1500 | 5K 10K 16K 20K 30K 40K |
| 16 | DIN FLANGE | DN10-4000 |
PN: 1 2.5 6 10 16 25 40 64 100 160 250 320 400 |
| 17 | EN1092 PL | DN10~DN600 | PN6 PN10 PN16 PN25 PN40 PN63 PN100 |
FAQ:
1.)Are you a trading company or Factory?
We are a real factory with our own producing machine and warehouse,started to do business from year 1993
2.)How long time of your longer cooperation customer?
Many customers have long cooperation with us,such as European customer cooperated with us 15years.and more.
3.)What is your advantage?
Best quality,low price,special service,each customer information record.
4.)What about your delivery time?
quantity less than 500tons,25days after get deposit,above 500tons will need 30-35 working days.
Contact Person: Rachael
Tel: 86-532 85761028
