| Place of Origin: | Hebei,China |
| Brand Name: | RT |
| Certification: | CE,ISO,BV,SGS etc |
| Model Number: | Blind Flange |
| Minimum Order Quantity: | 1ton |
|---|---|
| Price: | Negotiable |
| Packaging Details: | By Wooden Case or Pallets or as customer's request |
| Delivery Time: | 7-30 working days |
| Payment Terms: | T/T, L/C, D/P |
| Supply Ability: | 600tons/per month |
| Type: | WN,SO,BL,SW,TH,PL | Standard: | ANSI, Bs, DIN, GB, ISO, JIS |
|---|---|---|---|
| Pressure: | Class150/300/600/900/1500/2500 | Size: | 1/2''-48'' |
| Surface: | Anti-rust Oil, Clear Lacquer, Black Lacquer, Yellow Lacquer,hot-dipped Galvanized,electrical Galvanized | Usage: | Petroleum,Water,Steam,Air,etc. |
| Packing: | Wooden Boxes Package | Face Type: | FF, RF, LJ, RTJ |
| Technical: | Casting | Heat Treatment: | Annealing, Quenching Tempering |
| High Light: | ASTM 6 Inch Steel Pipe Flange,Class 2500 6 Inch Steel Pipe Flange,Galvanized Blind Flange |
||

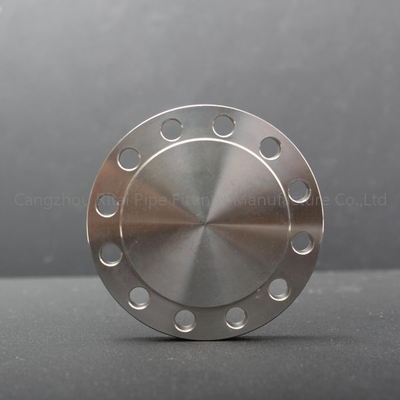

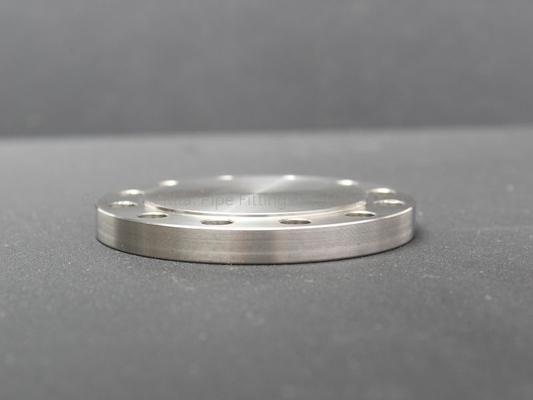

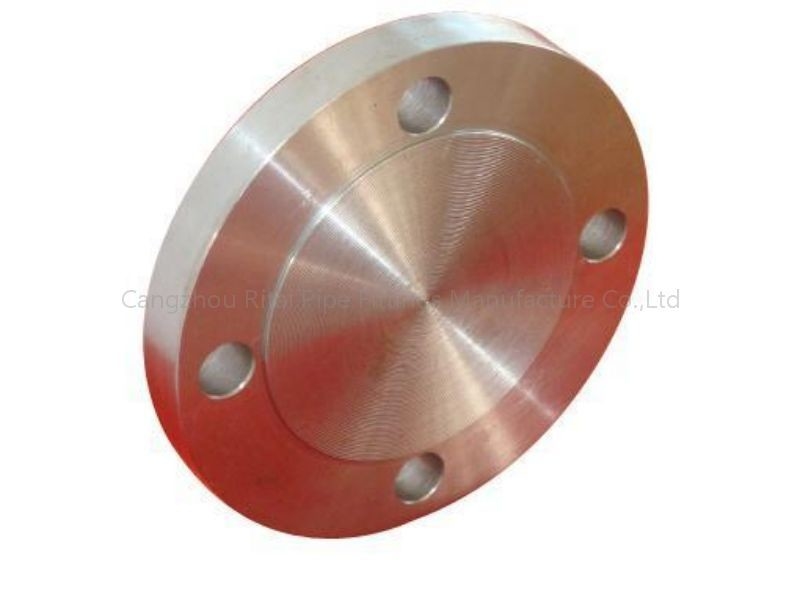

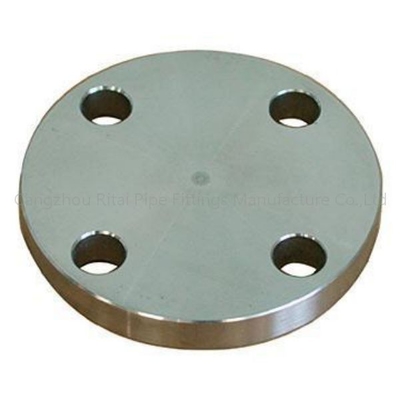

Description:
is also called blind plate, and the correct name is called flange cover. It is a flange without a hole in the middle for sealing the pipe plug. There are many types of sealing surfaces, including FF, RF, RTJ, RJ connection surfaces.
Specifications:
|
1) ANSI B16.5, ASME B16.47 FLANGE Size range: 1/2" to 80" DN15 to DN2000 Design: welding neck, slip on, blind, socket welding, threaded, lap-joint Pressure: 150#, 300#, 600#,900#,1500#, 2500# Wall thickness for welding neck flange: STD, SCH40, SCH80, SCH160. SCHXXS Material: carbon steel A105, stainless steel 304/304L, 316/316L Coating: black paint, yellow transparent paint, cold and hot dip galvanize Package: seaworthy plywooden case, wooden pallet
2) EN1092-1 FLANGE Size range: DN15 to DN2000 Design: type01 plate flange, type02 loose flange, type05 blind flange, type11 welding necking type12 slip on flange, type 13 threaded flange Pressure: PN6, PN10, PN16, PN25, PN40, PN64, PN100 Material: carbon steel C22.8, S235, S235JR, P235GH, stainless steel: 304/304L, 316/316L Coating: black paint, yellow transparent paint, cold and hot dip galvanize Package: sea worthy plywooden case, wooden pallet
3) DIN FLANGE Size range: DN15 to DN2000 Design: slip on flange DIN2573,2576,2502,2503, 2543,2545 welding neck falnge DIN2631, 2632,2633,2634,2635 blind flange DIN 2527 PN6, PN10, PN16, PN25, PN40 threaded falnge DIN2565,2566,2567,2567 loose flange DIN 2641,2642,2656,2673 Material: carbon steel ST37.2, stainless steel 1.4301, 1.4404 Coating: rust-proof oil, transparent paint, cold and hot galvanize Package: sea worthy plywooden case, wooden pallet
4) GOST FLANGE Size range: DN15 to DN 2000 Design : plate falnge 12820-80, welding neck flange 12821-80 Pressure: PN6, PN10, PN16, PN25, PN40 Material: carbon steel CT-20, stainless steel 304/304L, 316/316L Coating: rust-proof oil, cold and hot galvanize Package: sea worthy plywooden case, wooden pallet
5) JIS FALNGE Size ragne : 15A to 2000A Design: SOP, BIND, SOH, Puressure: 1K, 2K, 5K, 10K, 16K, 20K, 30K, 40K Material: carbon steel SS400, stainless steel SUS304, SUS316 Coating : rust-proof oil, cold and hot galvanize Packing: sea worthy plywooden case, wooden pallet |
Classification of flange:
Plate type flat welded steel pipe flange
1. According to the chemical (Hg) industry standard, it can be divided into integral flange (if), threaded flange (th), plate flat welding flange (PL), neck butt welding flange (WN), neck flat welding flange (so), socket welding flange (SW), butt welding ring loose flange (PJ / SE), flat welding ring loose flange (PJ / RJ), lining flange cover (BL (s)), flange cover (BL) [2].
2. According to the petrochemical (SH) industry-standard: threaded flange (PT), butt welding flange (WN), flat welding flange (so), socket welding flange (SW), loose flange (LJ), flange cover (not indicated).
3. According to JB industry standard, it is divided into the integral flange, butt welding flange, flat welding flange, butt welding ring plate loose flange, flat welding ring plate loose flange, flanging ring plate loose flange, and flange cover.
Q: What are the advantages of your company?
A:
(1): Prime quality and reasonable price.
(2): Wide excellent experiences with after-sale service.
(3): Every process will be checked by responsible QC which insures every product's quality.
(4): Professional packing teams which keep every packing safely.
(5): Trial order can be done in one week.
(6): Samples can be provided as per your requirements.
Q: What about your price?
A: Our price is very competitive because we are a factory.
Pls, feel free to contact us if you are interested in our products.
Q: How long is your delivery time?
A: Different products have different delivery times. The products will be delivered as soon as possible on the basis of quality assurance. Usually, the delivery time is within 5 days after we received your deposit.
