| Place of Origin: | Hebei,China |
| Brand Name: | RT |
| Certification: | CE,ISO,BV,SGS etc |
| Model Number: | Blind Flange |
| Minimum Order Quantity: | 1ton |
|---|---|
| Price: | Negotiable |
| Packaging Details: | By Wooden Case or Pallets or as customer's request |
| Delivery Time: | 7-30 working days |
| Payment Terms: | T/T, L/C, D/P |
| Supply Ability: | 600tons/per month |
| Type: | Slip On/Plate/Welding Neck/Blind Flaniiges | Standard: | ANSI, Bs, DIN, GB, ISO, JIS, ASME, GOST |
|---|---|---|---|
| Pressure: | 150#, 300#, 600#, 900#..., Pn10, Pn16, Pn25... | Size: | Customized Size |
| Surface: | Anti-rust Oil, Clear Lacquer, Black Lacquer, Yellow Lacquer,hot-dipped Galvanized,electrical Galvanized | Usage: | Water Works, Shipbuilding Industry, Petrochemical & Gas Industry |
| Packing: | Wooden Boxes Package | Face Type: | FF, RF, LJ, RTJ, TG. |
| Technical: | Forged, Casting | Heat Treatment: | Normalizing, Annealing, Quenching Tempering |
| High Light: | ASME B16.47 Steel Blind Flange,Pn16 Steel Blind Flange,RTJ Large Diameter Flange |
||
Product Description

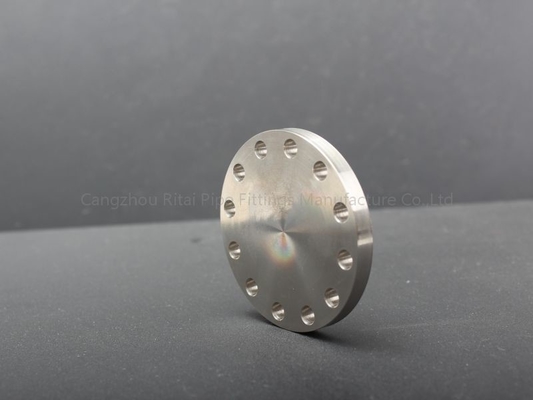

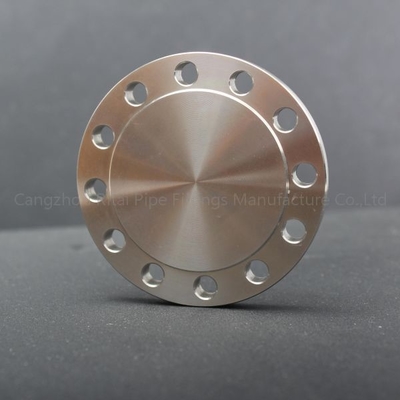

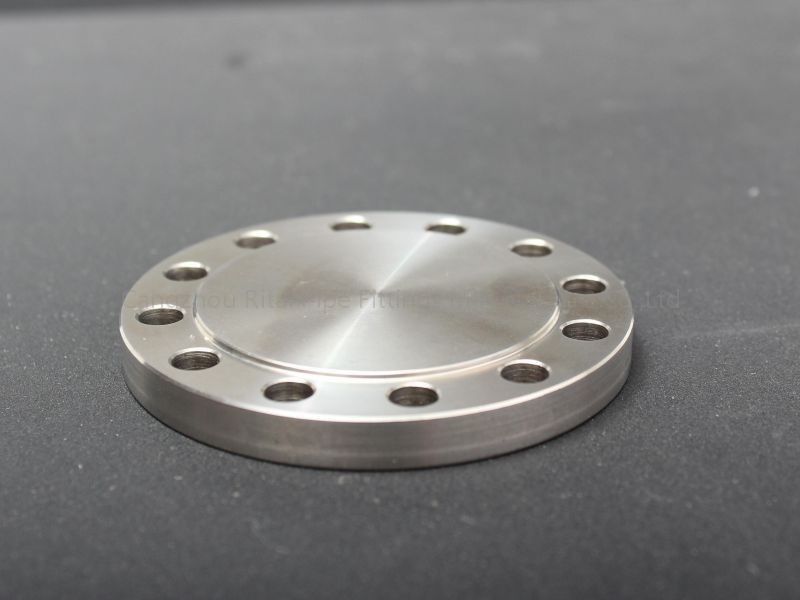

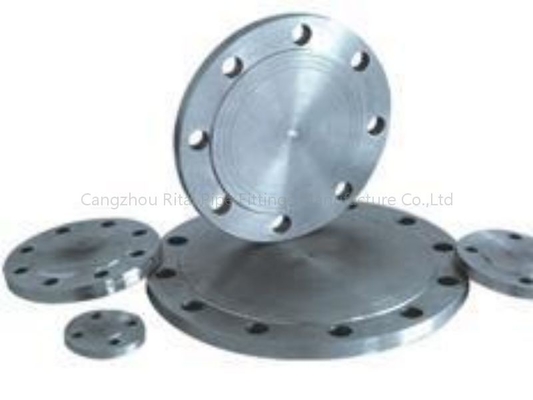

Steel Blind Flange Blind Flange Customized ASME B16.47 Large Diameter Flange
Description:
Steel Blind Flange Blind Flange Customized ASME B16.47 Large Diameter Flange is also called blind plate, and the correct name is called flange cover. It is a flange without a hole in the middle for sealing the pipe plug. There are many types of sealing surfaces, including FF, RF, RTJ, RJ connection surfaces.
Main Products:
* Weld neck flange
* Flat flange
* Sliding flange
* Blind flange
Specifications:
Please contact us for details if you are interested in our flanges.
| Steel Blind Flange Blind Flange Customized ASME B16.47 Large Diameter Flange | ||
| Material | Carbon steel | ASTM A105. ASTM A350 LF1. LF2, A234, S235JRG2, P245GH |
| 16MN, 20MN ,20# | ||
| Stainless steel | ASTM A182, F304/304L, F316/316L | |
| Alloy steel | ASTM A182 A182 F12,F11,F22,F5,F9,F91etc. | |
| Standard | ANSI | Class 150 Flanges-Class 2500 Flanges |
| DIN | 6Bar 10Bar 16Bar 25Bar 40Bar | |
| JIS | 5K Flanges-20K Flanges | |
| UNI | 6Bar 10Bar 16Bar 25Bar 40Bar | |
| EN | 6Bar 10Bar 16Bar 25Bar 40Bar | |
| TYPE | 1.Welding neck Flange 2.Slip on | |
| 3.Blind flange 4.Long welding neck flange | ||
| 5.Lap joint flange 6.Socket welding | ||
| 7.Threaded flange 8.Flat flange | ||
| Surface | Anti-rust oil, clear lacquer, Black lacquer, Yellow lacquer,hot-dipped Galvanized,electrical galvanized | |
| Connection | Welding, Threaded | |
| Technical | Forged, Casting | |
| Size | DN10-DN3600 | |
| Package | 1.>Standard export packaging (Plywood Case Of Outside,Plastic Cloth Of Inside). 2:As Customers' Requirements | |
| Heat Treatment | Normalizing, Annealing, Quenching Tempering | |
| Certificate | ISO9001:2008 | |
| Applications | Water works, Shipbuilding industry, Petrochemical & Gas industry, Power industry, Valve industry,and general pipes connecting projects etc. | |
Classification of flange:
Plate type flat welded steel pipe flange
1. According to the chemical (Hg) industry standard, it can be divided into integral flange (if), threaded flange (th), plate flat welding flange (PL), neck butt welding flange (WN), neck flat welding flange (so), socket welding flange (SW), butt welding ring loose flange (PJ / SE), flat welding ring loose flange (PJ / RJ), lining flange cover (BL (s)), flange cover (BL) [2].
2. According to the petrochemical (SH) industry-standard: threaded flange (PT), butt welding flange (WN), flat welding flange (so), socket welding flange (SW), loose flange (LJ), flange cover (not indicated).
3. According to JB industry standard, it is divided into the integral flange, butt welding flange, flat welding flange, butt welding ring plate loose flange, flat welding ring plate loose flange, flanging ring plate loose flange, and flange cover.
4. According to the national (GB) standard: integral flange, threaded flange, butt welding flange, flat welding flange with neck, socket welding flange with neck, butt welding ring with neck loose flange, plate flat welding flange, butt welding ring plate loose flange, flat welding ring plate loose flange, flanging ring plate loose flange, flange cover.
Q1: Wonder if you accept small orders?
A1: Do not worry. Feel free to contact us .in order to get more orders and give our clients more convener ,we accept small order.
Q2: Can you send products to my country?
A2: Sure, we can. If you do not have your own ship forwarder, we can help you.
Q3: Can you do OEM for me?
A3: We accept all OEM orders,just contact us and give me your design.we will offer you a reasonable price and make samples for you ASAP.
Q4: What's your payment terms ?
A4: By T/T,LC AT SIGHT,30% deposit in advance, balance 70% before shipment.
Q5: How long is your production lead time?
A5:It depends on product and order qty. Normally, it takes us 15 days for an order with MOQ qty.
Q7: When can I get the quotation ?
A7: We usually quote you within 24 hours after we get your inquiry. If you are very urgent to get the quotation.Please call us or tell us in your mail, so that we could regard your inquiry priority.
