| Place of Origin: | Hebei,China |
| Brand Name: | RT |
| Certification: | CE,ISO,BV,SGS etc |
| Model Number: | Blind Flange |
| Minimum Order Quantity: | 10 pieces |
|---|---|
| Price: | Negotiable |
| Packaging Details: | By Wooden Case or Pallets or as customer's request |
| Delivery Time: | 7-30 working days |
| Payment Terms: | T/T, L/C, D/P |
| Supply Ability: | 600tons/per month |
| Type: | Slip On/Plate/Welding Neck/Blind Flanges | Standard: | ANSI, DIN, GB, JIS |
|---|---|---|---|
| Pressure: | 150#, 300#, 600# | Size: | 1/2"-48" |
| Surface: | Black/Yellow/Transparent Paint | Usage: | Industrial Equipment, |
| Packing: | Sea-worthy Plywood Cases Or Pallet | Face Type: | FF, RF, LJ, RTJ, |
| High Light: | DIN Steel Blind Flange,300# Steel Blind Flange,1/2" Cast Iron Blind Flange |
||

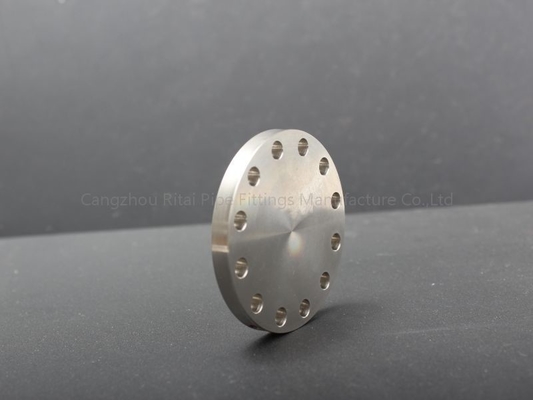

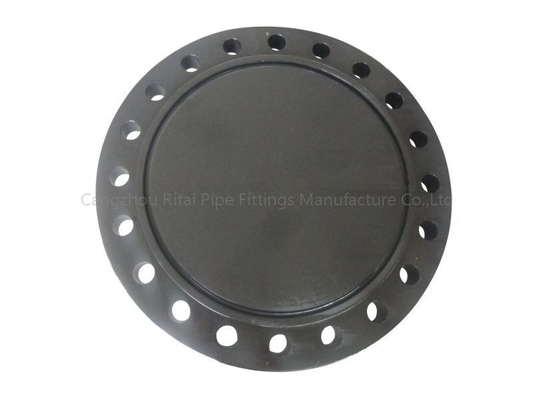

Custom high quality cast iron or carbon steel Steel Blind Flange
Description:
Custom high quality cast iron or carbon steel Steel Blind Flange is also called blind plate, and the correct name is called flange cover. It is a flange without a hole in the middle for sealing the pipe plug. There are many types of sealing surfaces, including FF, RF, RTJ, RJ connection surfaces.
Main Products:
* Weld neck flange
* Flat flange
* Sliding flange
* Blind flange
Specifications:
Please contact us for details if you are interested in our flanges.
| material: | carbon steel and stainless steel (ASTM A105, Q235, SS304, SS316, SS304L, SS316L) |
| standard: | ANSI B16.5, JIS, DIN, EN1092 |
| techonology: | forged |
| size: | 1/2"-96", DN40-DN1600 |
| type: | slip-on, lap joint, welding neck, socket welding, threaded, blind. |
| pressure: | 150LBS, 300LBS, 600LBS, 900LBS, 1500LBS... |
| treatment: | anti-rust oil, black painting, yellow painting ... |
| wall sickness: | sch40, sch80... |
| face type: | FF, RF, LJ, RTJ, TG. |
| usage: | the flanges are used for the connection of tubes that transport water, oil, gas, etc. |
|
1) ANSI B16.5, ASME B16.47 FLANGE Size range: 1/2" to 80" DN15 to DN2000 Design: welding neck, slip on, blind, socket welding, threaded, lap-joint Pressure: 150#, 300#, 600#,900#,1500#, 2500# Wall thickness for welding neck flange: STD, SCH40, SCH80, SCH160. SCHXXS Material: carbon steel A105, stainless steel 304/304L, 316/316L Coating: black paint, yellow transparent paint, cold and hot dip galvanize Package: seaworthy plywooden case, wooden pallet
2) EN1092-1 FLANGE Size range: DN15 to DN2000 Design: type01 plate flange, type02 loose flange, type05 blind flange, type11 welding necking type12 slip on flange, type 13 threaded flange Pressure: PN6, PN10, PN16, PN25, PN40, PN64, PN100 Material: carbon steel C22.8, S235, S235JR, P235GH, stainless steel: 304/304L, 316/316L Coating: black paint, yellow transparent paint, cold and hot dip galvanize Package: sea worthy plywooden case, wooden pallet
3) DIN FLANGE Size range: DN15 to DN2000 Design: slip on flange DIN2573,2576,2502,2503, 2543,2545 welding neck falnge DIN2631, 2632,2633,2634,2635 blind flange DIN 2527 PN6, PN10, PN16, PN25, PN40 threaded falnge DIN2565,2566,2567,2567 loose flange DIN 2641,2642,2656,2673 Material: carbon steel ST37.2, stainless steel 1.4301, 1.4404 Coating: rust-proof oil, transparent paint, cold and hot galvanize Package: sea worthy plywooden case, wooden pallet
4) GOST FLANGE Size range: DN15 to DN 2000 Design : plate falnge 12820-80, welding neck flange 12821-80 Pressure: PN6, PN10, PN16, PN25, PN40 Material: carbon steel CT-20, stainless steel 304/304L, 316/316L Coating: rust-proof oil, cold and hot galvanize Package: sea worthy plywooden case, wooden pallet
5) JIS FALNGE Size ragne : 15A to 2000A Design: SOP, BIND, SOH, Puressure: 1K, 2K, 5K, 10K, 16K, 20K, 30K, 40K Material: carbon steel SS400, stainless steel SUS304, SUS316 Coating : rust-proof oil, cold and hot galvanize Packing: sea worthy plywooden case, wooden pallet |
Classification of flange:
Plate type flat welded steel pipe flange
1. According to the chemical (Hg) industry standard, it can be divided into integral flange (if), threaded flange (th), plate flat welding flange (PL), neck butt welding flange (WN), neck flat welding flange (so), socket welding flange (SW), butt welding ring loose flange (PJ / SE), flat welding ring loose flange (PJ / RJ), lining flange cover (BL (s)), flange cover (BL) [2].
2. According to the petrochemical (SH) industry-standard: threaded flange (PT), butt welding flange (WN), flat welding flange (so), socket welding flange (SW), loose flange (LJ), flange cover (not indicated).
3. According to JB industry standard, it is divided into the integral flange, butt welding flange, flat welding flange, butt welding ring plate loose flange, flat welding ring plate loose flange, flanging ring plate loose flange, and flange cover.
FAQ:
Q1:What certificate do you have?
A: We have ISO 9001, CE certificate.
Q2. Can I get free samples?
A: Yes, The free samples can be offered for free.
Q3. Can I have my own Logo on the product?
A: Yes, Simple logo design is available based on not small order quantity.
Q4: Can I have my own customized product?
A: Yes, your customized requirements for color, size, mark, etc.
Q5: Can you produce the products according to my own drawing?
A: Yes, we can produce the products according to your drawing.
Q6: How long is your delivery time?
A: Generally it is about 30-45days depends on the order quantity.
Q7:What's your product range?
A:Forged Pipe Fitting,Butt welding Pipe Fitting,Pipe Clamps,Ductile Iron Groove Pipe Fitting,OEM Parts,Valves
