| Place of Origin: | Hebei,China |
| Brand Name: | RT |
| Certification: | ISO9001:2008/PED/API |
| Model Number: | Weld Neck Flange |
| Minimum Order Quantity: | 10 pieces |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 7-30 working days |
| Payment Terms: | T/T, L/C, D/P |
| Supply Ability: | 600 tons/per month |
| Type: | Weld Neck Flange | Standard: | ANSI, BS, DIN, GB, JIS |
|---|---|---|---|
| Pressure: | 150LB-2500LB | Size: | ASME B16.5:1/2"-24" ,ASME B16.47:26"-48" |
| Material: | A105N/Q235 | Surface: | Black Painting / Anti Rust Oil / Hot Dip Galvanized |
| Tolerance: | +-0.1 Mm | Application: | Petroleum, Chemical, Machinery Etc |
| High Light: | RTJ Weld Neck Flange,4 Inch Weld Neck Flange,A105 Forged Steel Flanges |
||

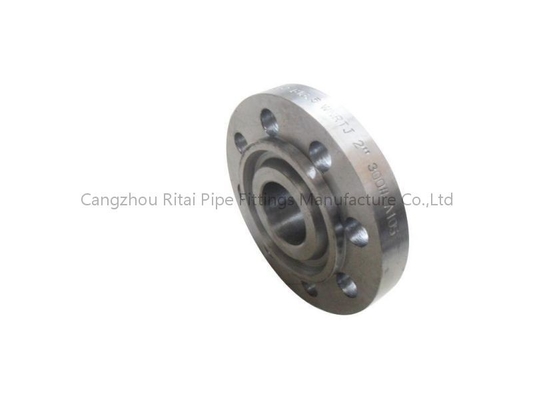

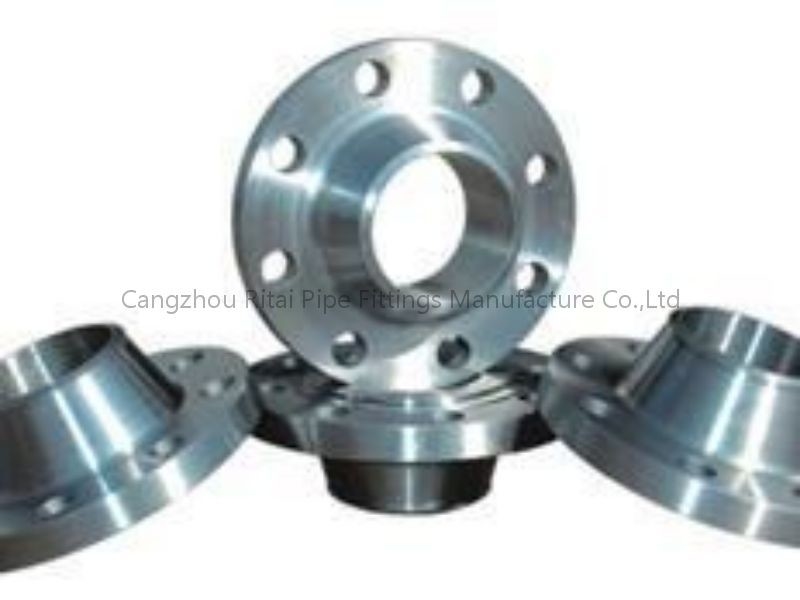

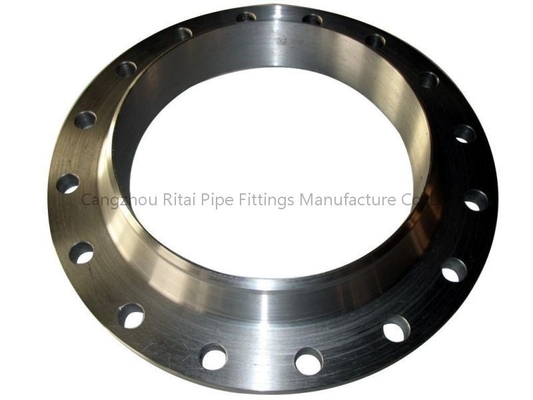

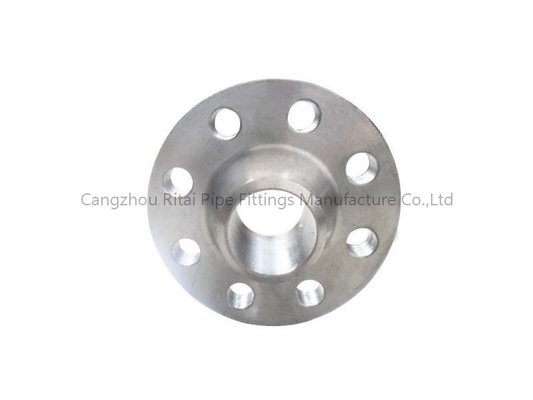

ASME B16.5 Sch40 Sch80 ASTM A105 Forged Carbon Steel RTJ weld neck flange
Description:
ASME B16.5 Sch40 Sch80 ASTM A105 Forged Carbon Steel RTJ weld neck flange are mainly suitable for butt welding of flanges and pipes. They have high strength and rigidity, reasonable structure, can withstand high temperature, high pressure, repeated bending and temperature fluctuations, and their sealing performance is reliable. Concave-convex sealing surface, nominal pressure 150#~1500#.
Application fields:
Petroleum, chemical, machinery, electric power, shipbuilding, papermaking, construction etc
Specifications:
| Size |
ASME B16.5:1/2"-24" ASME B16.47:26"-48" |
| Rating | 150LB/300LB/600LB/900LB/1500LB/2500LB |
| Standard | ASME B16.5, ASME B16.47A, ASME B16.47B, MSS SP 44, DIN 2632, DIN2633, DIN2634, DIN2635, DIN2636, JISB2220, BS4504, GB, etc |
| Material |
|
| Surface | Black Painting / Anti Rust Oil / Hot Dip Galvanized |
| Certification | ISO 9001:2015 |
| Packing | Plywood cases, pallets, or as per your request. |
| Application | Petroleum, chemical, machinery, electric power, shipbuilding, papermaking, construction etc |
Our Advantage
• Professional forgings manufacturer
• Experience in Cooperation with many foreign countries
• Offer OEM/ODM service
• Professional Engineering Capability
• Stable Quality
• Reasonable Price
• Prompt Delivery
• Professional Servic
FAQ:
Q1:What certificate do you have?
A: We have ISO 9001, CE certificate.
Q2. Can I get free samples?
A: Yes, The free samples can be offered for free.
Q3. Can I have my own Logo on the product?
A: Yes, Simple logo design is available based on not small order quantity.
Q4: Can I have my own customized product?
A: Yes, your customized requirements for color, size, mark, etc.
Q5: Can you produce the products according to my own drawing?
A: Yes, we can produce the products according to your drawing.
Q6: How long is your delivery time?
A: Generally it is about 30-45days depends on the order quantity.
Q7:What's your product range?
A:Forged Pipe Fitting,Butt welding Pipe Fitting,Pipe Clamps,Ductile Iron Groove Pipe Fitting,OEM Parts,Valves
