| Place of Origin: | Hebei,China |
| Brand Name: | RT |
| Certification: | ISO9001:2008/PED/API |
| Model Number: | Weld Neck Flange |
| Minimum Order Quantity: | 10 pieces |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 7-30 working days |
| Payment Terms: | T/T, L/C, D/P |
| Supply Ability: | 600 tons/per month |
| Type: | Weld Neck Flange | Standard: | ANSI, BS, DIN, GB, ASME |
|---|---|---|---|
| Pressure: | 150# | Size: | 1/2"-48" |
| Material: | A105N/Q235B | Surface: | Anti-rust Transparent Oiled |
| Tolerance: | 0.1mm | Package: | Ply-Wooden Cases |
| High Light: | RTJ Carbon Steel Welding Neck Flange,DIN Carbon Steel Welding Neck Flange,Weld Neck Flat Face Flange |
||

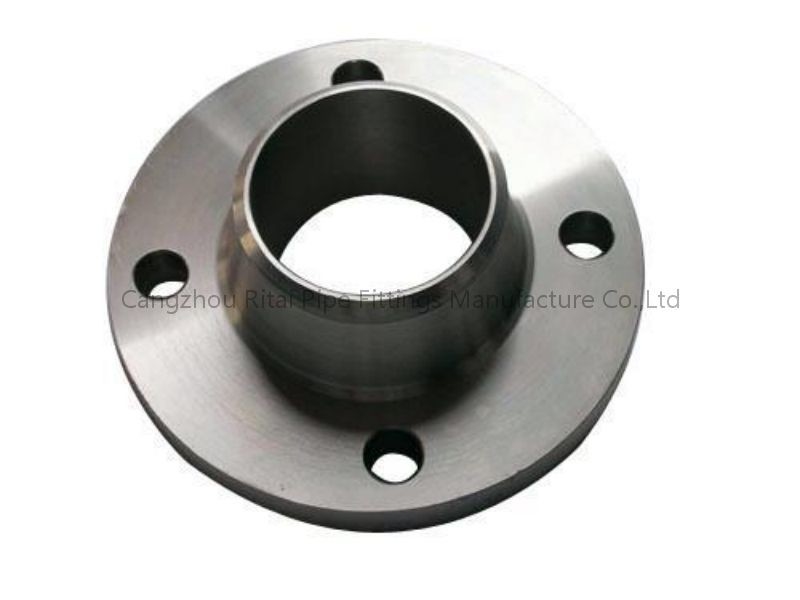

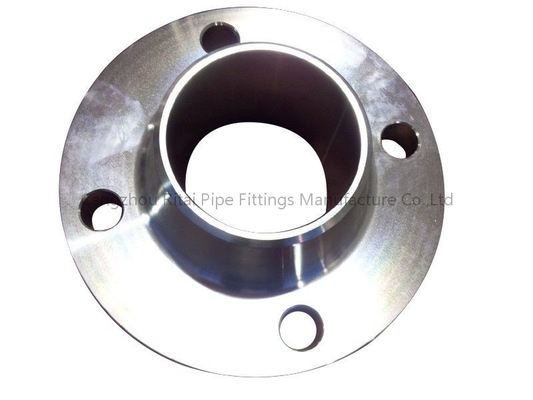

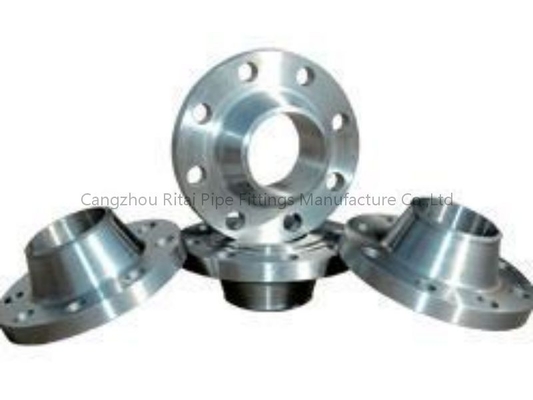

Pipe Fitting RF/RTJ/FF ANSI/JIS/DIN Welding Forged Weld Neck Carbon Steel Flange
Description:
|
1) ANSI B16.5, ASME B16.47 FLANGE Size range: 1/2" to 80" DN15 to DN2000 Design: welding neck, slip-on, blind, socket welding, threaded, lap-joint Pressure: 150#, 300#, 600#,900#,1500#, 2500# Wall thickness for welding neck flange: STD, SCH40, SCH80, SCH160. SCHXXS Material: carbon steel A105, stainless steel 304/304L, 316/316L Coating: black paint, yellow transparent paint, cold and hot-dip galvanized Package: seaworthy plywood case, wooden pallet
2) EN1092-1 FLANGE Size range: DN15 to DN2000 Design: type01 plate flange, type02 loose flange, type05 blind flange, type11 welding necking type12 slip-on flange, type 13 threaded flange Pressure: PN6, PN10, PN16, PN25, PN40, PN64, PN100 Material: carbon steel C22.8, S235, S235JR, P235GH, stainless steel: 304/304L, 316/316L Coating: black paint, yellow transparent paint, cold and hot-dip galvanized Package: seaworthy plywood case, wooden pallet
3) DIN FLANGE Size range: DN15 to DN2000 Design: slip on flange DIN2573,2576,2502,2503, 2543,2545 welding neck falnge DIN2631, 2632,2633,2634,2635 blind flange DIN 2527 PN6, PN10, PN16, PN25, PN40 threaded falnge DIN2565,2566,2567,2567 loose flange DIN 2641,2642,2656,2673 Material: carbon steel ST37.2, stainless steel 1.4301, 1.4404 Coating: rust-proof oil, transparent paint, cold and hot galvanize Package: seaworthy plywood case, wooden pallet
4) GOST FLANGE Size range: DN15 to DN 2000 Design: plate flange 12820-80, welding neck flange 12821-80 Pressure: PN6, PN10, PN16, PN25, PN40 Material: carbon steel CT-20, stainless steel 304/304L, 316/316L Coating: rust-proof oil, cold and hot galvanize Package: seaworthy plywood case, wooden pallet
5) JIS FALNGE Size ragne : 15A to 2000A Design: SOP, BIND, SOH, Puressure: 1K, 2K, 5K, 10K, 16K, 20K, 30K, 40K Material: carbon steel SS400, stainless steel SUS304, SUS316 Coating: rust-proof oil, cold and hot galvanize Packing: sea worthy plywooden case, wooden pallet |
Description:
| Products we can supply | Pipe Fitting RF/RTJ/FF ANSI/JIS/DIN Welding Forged Weld Neck Carbon Steel Flange |

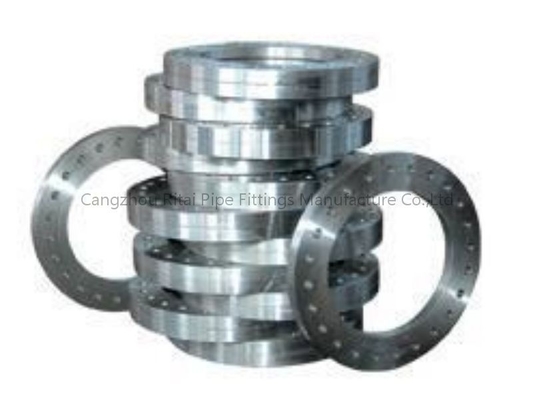

| plate Flange or Slip on for Stub Ends | |
| Threaded flange DIN2566 PN10 PN16 ANSI B16.5 150LBS | |
| Weld Neck flange DIN2633, DIN2632 PN10 PN16, ANSI 150LBS | |
| Socket weld flange, blind Flange | |
| Size Range | 1/2"-48" |
| Pressure | PN10 PN16, LOW-PRESSURE STANDARD, CAST STEEL |
| Standard | ANSI B16.5,EN1092-1, SABA1123, JIS B2220, DIN |
| Wall thickness | Standard, or lower thickness to 8mm, 10mm, 12mm, 14mm, 16mm, 20mm |
| Material | Carbon steel A105 ,ST37, Stainless steel SS304, SS316 |
| Application | Petrochemical industry; pharmaceutical industry |
| gas exhaust;power plant;shipbuilding;water treatment,etc. | |
| Advantages | ready stock, faster delivery time; available in all sizes. Customized |
Specifications:
Our Advantage
• Professional forgings manufacturer
• Experience in Cooperation with many foreign countries
• Offer OEM/ODM service
• Professional Engineering Capability
• Stable Quality
• Reasonable Price
• Prompt Delivery
• Professional Servic
FAQ:
1.)Are you a trading company or Factory?
We are a real factory with our own producing machine and warehouse,started to do business from year 1993
2.)How long time of your longer cooperation customer?
Many customers have long cooperation with us,such as European customer cooperated with us 15years.and more.
3.)What is your advantage?
Best quality,low price,special service,each customer information record.
